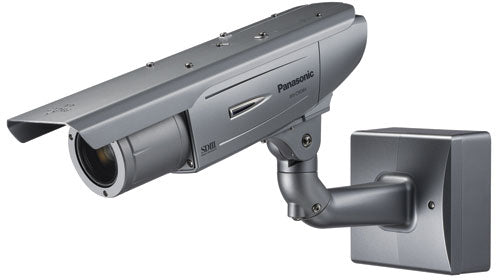

Panasonic WV-CW384 Super Dynamic III Day-Night Weather Resistant Fixed Network Security Camera

Overview

The Panasonic WV-CW384 uses Super Dynamic III - an advanced WDR system - to resolve scenes exhibiting high contrast, harsh backlighting, and other extreme lighting conditions. This is in addition to its high resolution of 540 TVL and Day/Night function, which it uses to switch to B/W mode when levels fall. In B/W mode, the camera can produce visible images in light levels as low as 0.009 lux (Sens Up 10x). With these attributes, the WV-CW384 can be relied upon to perform in virtually any lighting or scene environment. Panasonic also provided the WV-CW384 with an IP66-rated, weatherproof casing, which together with a built-in heater, blower and sun-shield will allow the camera to safely operate in an indoor or outdoor environment. Included with the camera is a wall mount bracket that matches the stylish design of the camera. Once mounted, video and power cables are concealed inside the bracket for a neat and secure installation.



Specifications

Model Number:  WV-CW384

Brand:  Panasonic

Alt Part Number(s):  WV-CW384

Type:  Network Security Camera



Technical Description

Brand:  Panasonic

Model:  WV-CW384

Camera Signal:  Analog

Resolution:  540 TVL

Sensor Option:  1/3" CCD

Lens Type:  Varifocal

Lens Size:  5-40mm

Infrared Distance:  Non Infrared

Durability:  Weather Resistant

Mount Type:  Wall

Voltage:  12vDC, 24vAC

Electronic Shutter:  OFF (1/60), 1/100, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000 sec

Image Device:  Interline transfer CCD

Image Pixels-Effective:  768 (H) x 494 (V)

Operating Humidity:  90 % or less (without condensation)

S/N Ratio:  50 dB (AGC Off, Weight On)

Scanning System:  2:1 interlace scan

Scanning Vertical:  59.94 Hz

Signal System:  NTSC

Weatherproof:  IP66

Synchronization:  Internal (INT), Multiplexed Vertical Drive (VD2), Line-Lock (LL)

Digital Noise Reduction:  High / Low



Features

Offers a color horizontal resolution of 540TV lines

Includes built-in fan, heater, and sun shield

Offers a versatile mounting bracket that encloses video and power cables

Operating temperature in harsh environments offers a superior image
