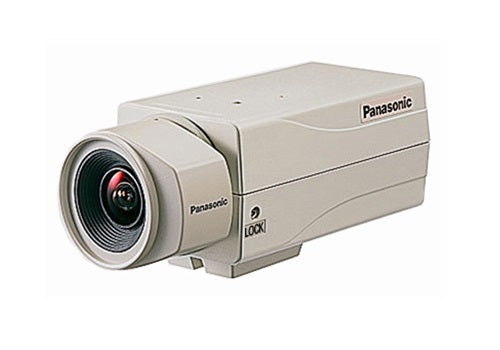

Panasonic WV-CP242 480TVL Color CCTV Network Security Camera

Overview

Digital signal processing (DSP) provides outstanding picture quality, versatile functions, and system integration capability. This solid state CCD camera incorporates a 1/3" interline transfer CCD (380,000 pixels) with outstanding horizontal resolution of 480 lines and signal-to-noise ratio of 50dB. It can also accommodate three synchronization modes for system integration and roll-free switching. To further extend the versatility, an Intelligent Backlight Compensation (BLC), aperture correction and an advanced auto tracing white balance (ATW) functions deliver crisp, sharp pictures even under extreme lighting conditions.



Specifications

Model Number:  WV-CP242

Brand:  Panasonic

Alt Part Number(s):  WV-CP242

Product Type:  Network Security Camera



Technical Description

Panasonic WV-CP242 480TVL Color CCTV Network Security Camera.



Features

1/3"-type CCD pick-up element with 768(H) x 494(V) pixels

480 lines of horizontal resolution

Digital signal processing (DSP) minimizes aliasing (color noise) by the camera when viewing patterned objects.

Built-in digital 2H enhancement and digital aperture correction.

Advanced digital adaptive backlight compensation (BLC) capability.

Knee circuit

Outstanding 50 dB of signal-to-noise ratio provides natural looking images.

Minimum illumination of 2 lux at f/1.4

Accepts both C and CS mount lenses.

Advanced Electronic Light Control (ELC) enables the use of inexpensive fixed iris lenses.

Line-lock capability for roll-free picture during systems operation switching.
