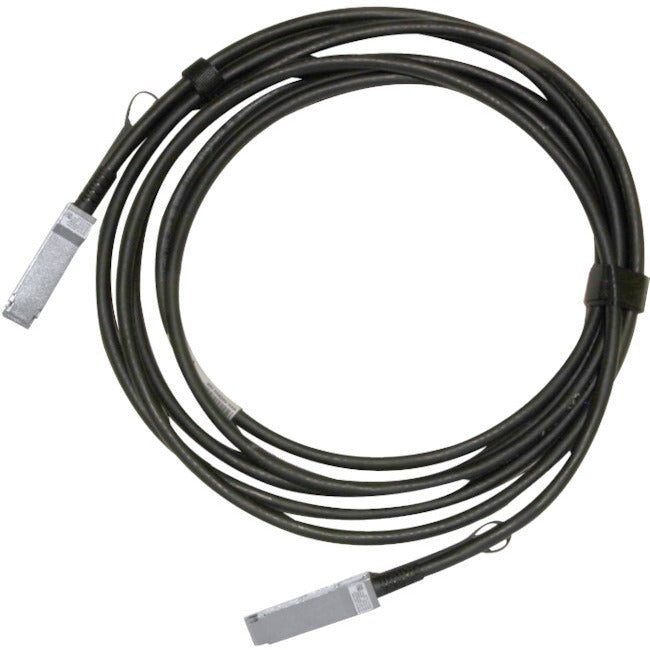

NVIDIA MCP1600-C002E30N Mellanox DAC 100GbE QSFP28 2m Cable Ethernet
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
NVIDIA MCP1600-C002E30N Mellanox DAC 100GbE QSFP28 2m Cable Ethernet
NVIDIA MCP1600-C002E30N Direct Attach Copper Cable Ethernet 100GbE QSFP28 2m Black 30AWG CA-N100GbE QSFP28 Direct Attach Copper Cable
NVIDIA's direct attach copper (DAC) cables are high speed, cost-effective alternatives to fiber optics in 100Gb/s Ethernet applications.
NVIDIA QSFP28 passive copper cable contains four high-speed copper pairs, each operating at data rates of up to 25GbE. Each QSFP28 connector includes an EEPROM providing product information which can be read by the host system.
NVIDIA's unique quality, passive, copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.
MCP1600-C0xxEyyz cables up to 2m support IEEE 802.3bj CA-25G-N (Cable Assembly No-FEC) with low latency. Cables from 3m to 5m support IEEE 802.3bj CA-25G-L (Cable Assembly Long) with RS-FEC (Reed Solomon Forward Error Correc
- Allows you to access all of the networked data, swiftly and securely
- Twinaxial cable type - for places where up to 10 meters coverage with high-speed data transfer is required
- Passive feature for better reliability and ensure maximum productivity
- Fully compatible with network devices
Product Specification:
| Cable Length: 6.56 ft |
| Product Type: Network Cable |
| Data Transfer Rate: 100 Gbit/s |
| Device Supported: Network Device |
| Jacket Type: LSZH |
| Manufacturer Part Number: MCP1600-C002E30N |
| Manufacturer Website Address: http://www.nvidia.com |
| Limited Warranty: 1 Year |
| Features: Passive,Lead-free,Halogen Free,Bendable |
| Manufacturer: NVIDIA Corporation |
| Product Name: DAC Cable Ethernet 100GbE QSFP28 2m |
| Product Line: LinkX |
| Brand Name: Mellanox |
| Environmentally Friendly: Yes |
| Cable Type: Twinaxial |
| Connector Type On First End: SFF-8665 QSFP28 Network |
| Connector Type On Second End: SFF-8665 QSFP28 Network |
| American Wire Gauge: 30 AWG |
| Product Color: Black |
| Connector On First End Details: 1 x SFF-8665 QSFP28 Network |
| Connector On Second End Details: 1 x SFF-8665 QSFP28 Network |
| Product Material: Copper |
| Number Of Pairs: 4 |
| Environmental Compliance: Restriction of Hazardous Substances (RoHS) |
| Feature1: Allows you to access all of the networked data, swiftly and securely |
| Feature2: Twinaxial cable type - for places where up to 10 meters coverage with high-speed data transfer is required |
| Feature3: Passive feature for better reliability and ensure maximum productivity |
| Feature4: Fully compatible with network devices |
*
