Description
Overview

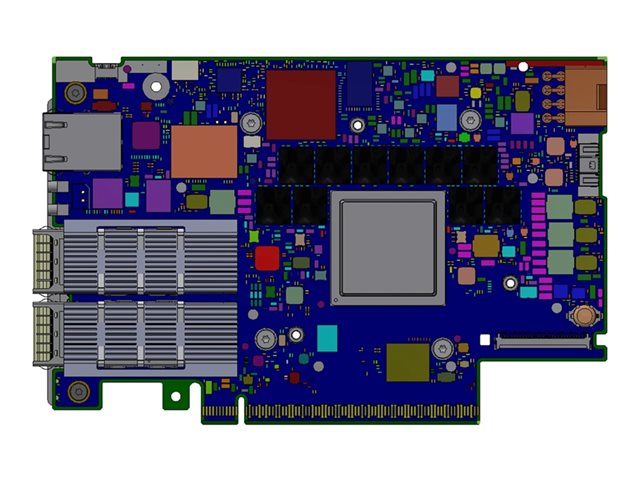

NVIDIA 900-9D3C6-00CV-DA0 BlueField-3 B3220SH E-Series FHHL 200GbE Network Adapter
Specifications
Model Number: 900-9D3C6-00CV-DA0
Brand: NVIDIA
Alt Part Number(s): 900-9D3C6-00CV-DA0
Product Type: Network Adapter
Technical Description
Brand: NVIDIA
Model: 900-9D3C6-00CV-DA0
Form Factor: Plug-in card
Interface (Bus) Type: PCI Express 5.0 x16
PCI Specification Revision: PCIe 5.0, PCIe 4.0, PCIe 3.0, PCIe 2.0, PCIe 1.1
Ports: 200 Gigabit QSFP112 x 2
Connectivity Technology: Wired
Cabling Type: Ethernet 200GBase-CR4, Ethernet 100GBase-CR4, Ethernet 100GBase-CR2, Ethernet 100GBase-CR1, Ethernet 50GBase-CR, Ethernet 50GBase-R2, Ethernet 40GBASE-CR4, Ethernet 40GBase-R2, Ethernet 25GBase-R, Ethernet 10GBase-R, Ethernet 10GBase-CX4, Ethernet 1000Base-CX, Ethernet 200GAUI-4, Ethernet 100GAUI-2, Ethernet 200GAUI-2, Ethernet 50GAUI-2, Ethernet 50GAUI-1, Ethernet 25GAUI
Data Link Protocol: 200GbE, 100GbE, 50GbE, 40GbE, 25GbE, 10GbE, 1GbE
Features: Integrated BMC, 16-core CPU, InfiniBand EDR Link support, InfiniBand FDR Link support, InfiniBand HDR Link support, InfiniBand HDR100 Link support, InfiniBand NDR200 Link support, InfiniBand SDR Link support, FHHL, auto-negotiation, PCIe x16 extension option, crypto disabled, XLPPI electrical interface
RAM: 48 GB
Interfaces: 2 x 200Gb Ethernet / 200Gb InfiniBand – QSFP112
Compliant Standards: IBTA 1.5, CB, cTUVus, FCC, VCCI, ICES, RCM, RoHS
Power: DC 12 V
Voltage Required: DC 12 V
Dimensions (WxDxH): 6.6 in x 4.4 in
Min Operating Temperature: 32 °F
Max Operating Temperature: 131 °F
Humidity Range Operating: 10 – 85% RH
