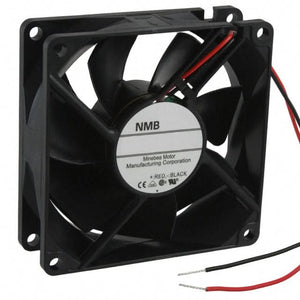

NMB Technologies 3110KL-04W-B10 3110KL-Series 12Volts DC 0.100Amp Tubeaxial Ball Bearing Cooling Fan
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
| Specifications | |
| Model Number | 3110KL-04W-B10 |
| Brand | NMB Technologies |
| Condition | Refurbished |
| Alt Part Number(s) | 3110KL-04W-B10 |
| Type | Cooling Fan |
| Technical Description | |
| Brand | NMB Technologies |
| Model | 3110KL-04W-B10 |
| Family | DC Fans |
| Series | 3110KL |
| Voltage - Rated | 12VDC |
| Size / Dimension | Square - 80mm L x 80mm H x 25mm W |
| Air Flow | 24.7 CFM (0.699m³/min) |
| Static Pressure | 0.067 in H2O (16.7 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Noise | 22 dB |
| Power (Watts) | 1.20W |
| RPM | 2150 RPM |
| Termination | 2 Wire Leads |
| Current Rating | 0.100A |
| Voltage Range | 6 - 13.8VDC |
| Life Expectancy | 70000 hrs @ 25°C |
| Material - Frame | Plastic |
| Material - Blade | Plastic |
* | |
