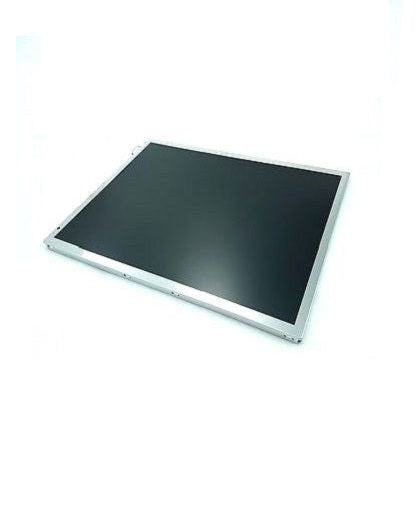

NEC NL10276BC30-33D 15.0-Inch a-Si TFT Active Matrix LCD Module

Specifications

Model Number:  NL10276BC30-33D

Brand:  Nec

Alt Part Number(s):  NL10276BC30-33D

Product Type:  LCD Module



Technical Description

Brand:  Nec

Model:  NL10276BC30-33D

Drive method:  a-Si TFT active matrix

Screen size:  15.0 inches (38 cm diagonal)

Number of pixels:  1024 x 768

Effective display area:  304.13 (H) x 228.1 (V) mm

Backlight:  Top and bottom, 1 CCFL each

Luminance:  400 cd/m2

Contrast:  500:1

Display colors:  16.77M colors

Viewing angle:  Up: 80°, down: 80°, right: 80°, left: 80° [1]

Response time (ton):  18 ms [2]

Outline dimension:  326.5 (W) x 253.5 (H) x 12.0 (max., D) mm

Operating temperature:  -20°C to +70°C

Storage temperature:  -20°C to +80°C

Power supply voltage:  3.3 V

Power consumption:  10.0 W [3]

Input signal:  LVDS (RGB 8 bits each)



Features

Industrial Grade LCD Panel with Long Product Life

15” Display Size

XGA Resolution

Low Cost LCD Panel

Wide Viewing Angle

PSWG Compliance

Wide Operating Temperature Range

LCD Controller Board with DVI and VGA Inputs (S-Video, Composite, and HDMI inputs available upon request for different controller)

OSD Kit

CCFL Backlight Inverter
