- Overview
Overview

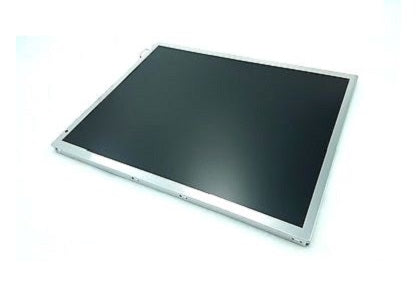

NEC NL10276BC30-33D NL10276 series is a 15.0 inch industrial LCD module using a Si TFT active matrix with XGA 1024 x 768 resolution for clear and reliable display performance. It features 400 cd per square meter brightness, 500 to 1 contrast ratio, wide 80 degree viewing angles, LVDS input, and a wide operating temperature range for industrial applications.
Specifications
Model Number: NL10276BC30-33D
Brand: NEC
Alt Part Number(s): NL10276BC30-33D
Product Type: LCD Module
Technical Description
Brand: NEC
Model: NL10276BC30-33D
Drive Method: a-Si TFT active matrix
Screen Size: 15.0 inches (38 cm diagonal)
Number of Pixels: 1024 x 768
Effective Display Area: 304.13 (H) x 228.1 (V) mm
Backlight: Top CCFL; Bottom CCFL
Luminance: 400 cd/m²
Contrast: 500:1
Display Colors: 16.77M colors
Viewing Angle: Up 80°; Down 80°; Right 80°; Left 80°
Response Time (Ton): 18 ms
Outline Dimension: 326.5 (W) x 253.5 (H) x 12.0 (D, max.) mm
Operating Temperature: -20°C to +70°C
Storage Temperature: -20°C to +80°C
Power Supply Voltage: 3.3 V
Power Consumption: 10.0 W
Input Signal: LVDS (RGB 8 bits each)
Features: Industrial-grade LCD panel with long product life; 15-inch display size; XGA resolution; Low-cost LCD panel; Wide viewing angle; PSWG compliance; Wide operating temperature range; LCD controller board with DVI and VGA inputs; S-Video support (optional); Composite input support (optional); HDMI input support (optional); OSD kit; CCFL backlight inverter
