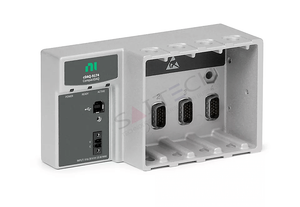

National Instruments cDAQ-9174 4-Port USB 2.0 CompactDAQ Chassis

Overview

The cDAQ-9174 is a CompactDAQ USB chassis designed for small, portable sensor measurement systems. The chassis provides the plug-and-play simplicity of USB to sensor and electrical measurements. It also controls the timing, synchronization, and data transfer between C Series I/O modules and an external host. You can use this chassis with a combination of C Series I/O modules to create a mix of analog I/O, digital I/O, and counter/timer measurements. The cDAQ-9174 also has four 32-bit general-purpose counters/timers. With multiple timing engines, you can run seven hardware-timed operations simultaneously, with three independent rates for analog input.



Specifications

Model Number:  cDAQ-9174

Brand:  National Instruments

Alt Part Number(s):  cDAQ-9174

Product Type:  Chassis



Technical Description

Brand:  National Instruments

Model:  cDAQ-9174

Number Of Slots:  4

Bus Connector:  USB 2.0

Timing Resolution:  12.5 ns

Onboard Trigger:  No

Operating Temperature Range:  -20 °C to 55 °C

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

Height:  6.28"

Width:  3.47"

Depth:  2.3”
