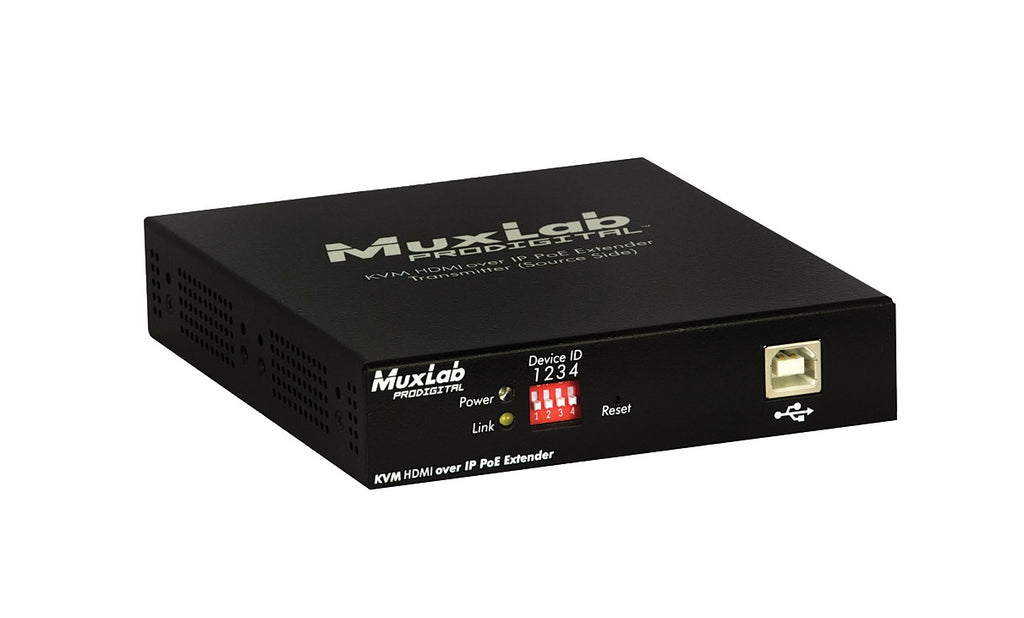

MuxLab 500757-TX HDMI Over IP H.264 Power Over Ethernet Transmitter
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
The MuxLab 500757-TX is an HDMI over IP H.264 PoE Transmitter designed to extend HDMI signals over a local Ethernet network. It is typically used for digital signage and large-scale A/V distribution.
Specifications
Model Number: 500757-TX
Brand: MuxLab
Alt Part Number(s): 500757-TX
Product Type: Power Over Ethernet Transmitter
Technical Description
Brand: MuxLab
Model: 500757-TX
Resolution Supported: Up to 1080p @ 30 Hz on HDMI
Devices: DVD, plasma, projectors, monitors, TV, PC, laptops, and servers supporting HDMI
Control: Controllable via the Ethernet port
HDMI Standard: HDMI 1.3, HDCP 1.1
Latency: One video frame
Network Requirements: Compliant with the full IEEE 802.3-2002 specifications (100BASETX)
Network Bandwidth: Video - 18 Mb/s, Audio - 256 kb/s
IR Frequency: 38 to 56 kHz
PoE Standard: IEEE 802.3af
Power Consumption: 4.5 W
Enclosure Type: Metal enclosure
Regulatory: FCC, CE, RoHS
Flammability: 94V0
