- Overview

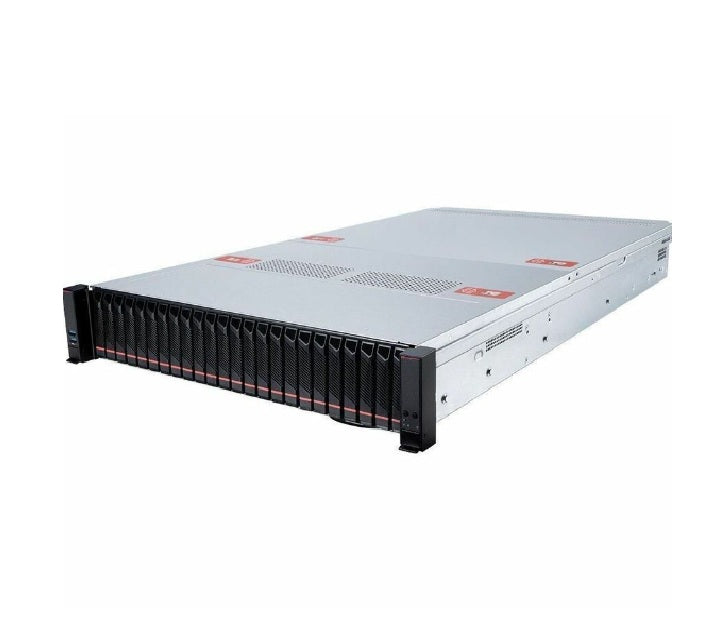

The S5062X270RAU24 is a model number for the MSI CX270-S5062, a high-density 2U dual-socket enterprise server. Built on the OCP Datacenter Modular Hardware System (DC-MHS) architecture, it is engineered for compute-intensive workloads such as AI inference, cloud computing, and large-scale data processing.
- 2U (DC-MHS architecture)
- Dual Intel® Xeon® 6700 series processors, TDP up to 350W
- (32) DDR5 RDIMM, 8 channels per CPU(2DPC), up to 6400MT/s(1DPC) and 5200MT/s(2DPC)
- (24) Front hot-swap 2.5" U.2 PCIe 5.0 x4 NVMe drive bays
- (2) Rear hot-swap E1.S 9.5mm PCIe 5.0 x4 NVMe drive bays
- (2) 2280/22110 PCIe 5.0 x2 NVMe M.2 ports
- Max (3) PCIe 5.0 x16 expansion slots
- (1) PCIe 5.0 x16 OCP3 NIC Mezzanine slot (NCSI supported)
- (1) 1000Base-T Dedicated Server Management port with:
- ASPEED AST2600 with IPMI 2.0 & DMTF Redfish support
- Dual BIOS & BMC
- TPM2.0 and Hardware Root of Trust module are supported as optional
Product Specification:
Package Contents:
|
| Product Type: Barebone System |
| Input Voltage: 120 V AC,230 V AC |
| Manufacturer Website Address: http://www.msi.com |
| Packaged Quantity: 1 |
| Form Factor: Rack-mountable |
| Manufacturer: MSI |
| Product Name: S5062X270RAU24 Barebone Systems |
| Processor Supported: Xeon 6 |
| Raid Levels: 0, 1, 5, 10 |
| Controller Type: NVMe |
| Processor Socket: Socket LGA-4710 |
| Rack Height: 2U |
| Brand Name: MSI |
| Memory Technology: DDR5 SDRAM |
| Thermal Design Power: 350 W |
| Chipset Manufacturer: Intel |
| Graphics Controller Manufacturer: ASPEED |
| Number Of Power Supplies Installed: 2 |
| Graphics Memory Accessibility: Dedicated |
| Number Of Processors Supported: 2 |
| Number Of Processors Installed: 2 |
| Raid Supported: Yes |
| Ethernet Technology: Gigabit Ethernet |
| Number Of Total Expansion Bays: 24 |
| Number Of Pci Express X16 Slots: 3 |
| Number Of Network (Rj 45) Ports: 1 |
| Network (Rj 45): Yes |
| Maximum Power Supply Wattage: 2700 W |
| Total Number Of Usb Ports: 2 |
| Number Of Onboard Usb 2.0 Ports: 1 |
| Number Of 2.5" Bays: 24 |
| Total Number Of Expansion Slots: 3 |
| Number Of M.2 Interfaces: 2 |
| Number Of Usb Type A Ports: 1 |
| Total Number Of Memory Slots: 32 |
| Energy Efficiency Compliance: Energy-related Products Directive (ErP) |
| Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Feature1: 2U (DC-MHS architecture) |
| Feature2: Dual Intel® Xeon® 6700 series processors, TDP up to 350W |
| Feature3: (32) DDR5 RDIMM, 8 channels per CPU(2DPC), up to 6400MT/s(1DPC) and 5200MT/s(2DPC) |
| Feature4: (24) Front hot-swap 2.5" U.2 PCIe 5.0 x4 NVMe drive bays |
| Feature5: (2) Rear hot-swap E1.S 9.5mm PCIe 5.0 x4 NVMe drive bays |
| Feature6: (2) 2280/22110 PCIe 5.0 x2 NVMe M.2 ports |
| Feature7: Max (3) PCIe 5.0 x16 expansion slots |
| Feature8: (1) PCIe 5.0 x16 OCP3 NIC Mezzanine slot (NCSI supported) |
| Feature9: (1) 1000Base-T Dedicated Server Management port with: |
| Feature10: ASPEED AST2600 with IPMI 2.0 & DMTF Redfish support |
| Feature11: Dual BIOS & BMC |
| Feature12: TPM2.0 and Hardware Root of Trust module are supported as optional |
*
