- Overview

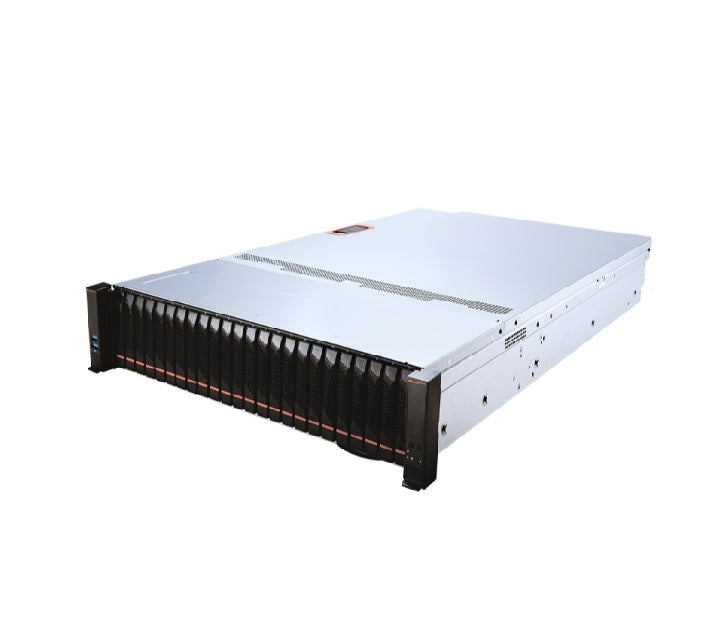

The S4056X271RAU24 is a model number for the MSI CX271-S4056, a high-density 2U single-socket enterprise server. Part of MSI’s DC-MHS (Datacenter Modular Hardware System) lineup, it is optimized for maximum memory capacity and high-TDP processing, making it ideal for AI, virtualization, and cloud-native workloads.
- 2U (DC-MHS architecture)
- Single AMD EPYC™ 9004/9005 Series processor, TDP up to 500W
- (24) DDR5 RDIMM, 12 channels(2DPC), up to 5200MT/s(1DPC) and 4400MT/s(2DPC)
- (24) Front hot-swap 2.5" U.2 PCIe 5.0 x4 NVMe drive bays
- (2) 2280/22110 PCIe 3.0 x2 NVMe M.2 ports
- (2) PCIe 5.0 x16 OCP3 NIC Mezzanine slot (NCSI supported)
- (1) 1000Base-T Dedicated Server Management port with:
- ASPEED AST2600 with IPMI 2.0 & DMTF Redfish support
- Dual BIOS & BMC
- TPM2.0 and Hardware Root of Trust module are supported as optional
Product Specification:
Package Contents:
|
| Product Type: Barebone System |
| Input Voltage: 120 V AC,230 V AC |
| Manufacturer Website Address: http://www.msi.com |
| Maximum Memory Supported: 6 TB |
| Packaged Quantity: 1 |
| Form Factor: Rack-mountable |
| Manufacturer: MSI |
| Product Name: S4056X271RAU24 Barebone Systems |
| Processor Supported: EPYC |
| Controller Type: NVMe |
| Processor Socket: Socket SP5 LGA-6096 |
| Rack Height: 2U |
| Brand Name: MSI |
| Plug/Connector Type: C13 |
| Memory Technology: DDR5 SDRAM |
| 64 Bit Processing: Yes |
| Thermal Design Power: 500 W |
| Processor Manufacturer: AMD |
| Chipset Manufacturer: AMD |
| Graphics Controller Manufacturer: ASPEED |
| Number Of Power Supplies Installed: 2 |
| Graphics Memory Accessibility: Dedicated |
| Number Of Processors Supported: 1 |
| Ethernet Technology: Gigabit Ethernet |
| Number Of Total Expansion Bays: 24 |
| Number Of Pci Express X16 Slots: 2 |
| Number Of Network (Rj 45) Ports: 1 |
| Network (Rj 45): Yes |
| Maximum Power Supply Wattage: 2000 W |
| Total Number Of Usb Ports: 3 |
| Number Of Usb 3.0 Ports: 1 |
| Number Of 2.5" Bays: 24 |
| Total Number Of Expansion Slots: 2 |
| Mini Displayport: Yes |
| Number Of M.2 Interfaces: 2 |
| Total Number Of Memory Slots: 24 |
| Energy Efficiency Compliance: Energy-related Products Directive (ErP) |
| Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Feature1: 2U (DC-MHS architecture) |
| Feature2: Single AMD EPYC™ 9004/9005 Series processor, TDP up to 500W |
| Feature3: (24) DDR5 RDIMM, 12 channels(2DPC), up to 5200MT/s(1DPC) and 4400MT/s(2DPC) |
| Feature4: (24) Front hot-swap 2.5" U.2 PCIe 5.0 x4 NVMe drive bays |
| Feature5: (2) 2280/22110 PCIe 3.0 x2 NVMe M.2 ports |
| Feature6: (2) PCIe 5.0 x16 OCP3 NIC Mezzanine slot (NCSI supported) |
| Feature7: (1) 1000Base-T Dedicated Server Management port with: |
| Feature8: ASPEED AST2600 with IPMI 2.0 & DMTF Redfish support |
| Feature9: Dual BIOS & BMC |
| Feature10: TPM2.0 and Hardware Root of Trust module are supported as optional |
*
