- Overview
Overview

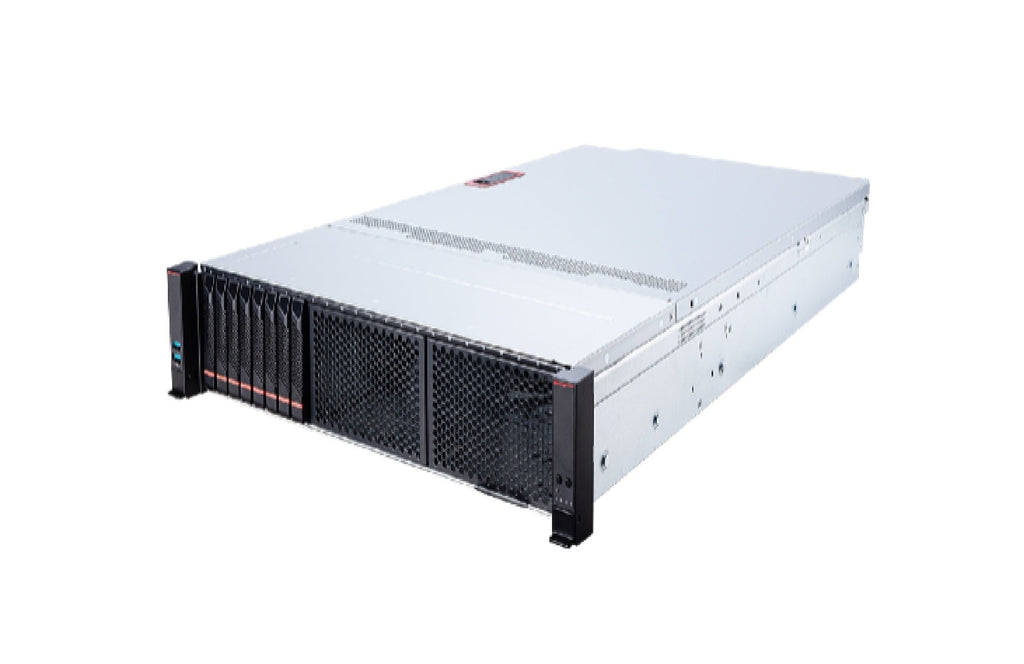

The MSI S3066X271RAU8 is a 2U rackmount server barebone system from the MSI CX271-S3066 series. It is specifically configured as a single-socket platform that balances high-speed NVMe storage with GPU expansion capabilities
Specifications
Model Number: S3066X271RAU8
Brand: MSI
Alt Part Number(s): S3066X271RAU8
Product Type: Barebone Server
Technical Description
Brand: MSI
Model Number: S3066X271RAU8
Model Series: CX271-S3066
Processor Type: Single Intel Xeon 6700E/ 6500P/6700P-Series Processor
Processor Core: 86-Core
Processor Thread: 172-Thread
Processor Power: TDP Up to 350W
Processor Socket: (1) LGA4710 (Socket E2)
Motherboard: MS-S376
Chipset Type: System-on-a-Chip (SoC)
GPU Modular: NVIDIA MGX and OCP DC-MHS
Graphics Controller: ASPEED AST2600
Networking: (2) PCIe 5.0 x16 OCP3.0 slots (NCSI supported)
RAID Levels: NVMe RAID 0/1/5/10 support Intel VROC
Number of Drive Bays: (8) Front hot-swap 2.5" U.2 PCIe 5.0 x4 NVMe drive bays
Internal Storage: (2) 2280/22110 PCIe 5.0 x2 NVMe M.2 ports
Expansion Slots: 3 x PCIe 5.0 x16 slots
Memory Supported: 4TB
Memory Size: 256GB(RDIMM), 64GB(MRDIMM)
Memory Technology: DDR5
Memory Speed: RDIMM-6400MT/s(1DPC), 5200MT/s(2DPC), MRDIMM-8000MT/s
Memory Slots: 16 DIMM slots
Memory Channels: 8-Channels
Cooling: (1) EVAC air cooling module, (6) 6056 Hot-swap System Fans
Power Supply: (1+1) Redundant 2400W CRPS 80PLUS Titanium
Form Factor: 2U Rackmount
Height: 3.4"
Width: 17.2"
Depth: 30"
*
