- Overview

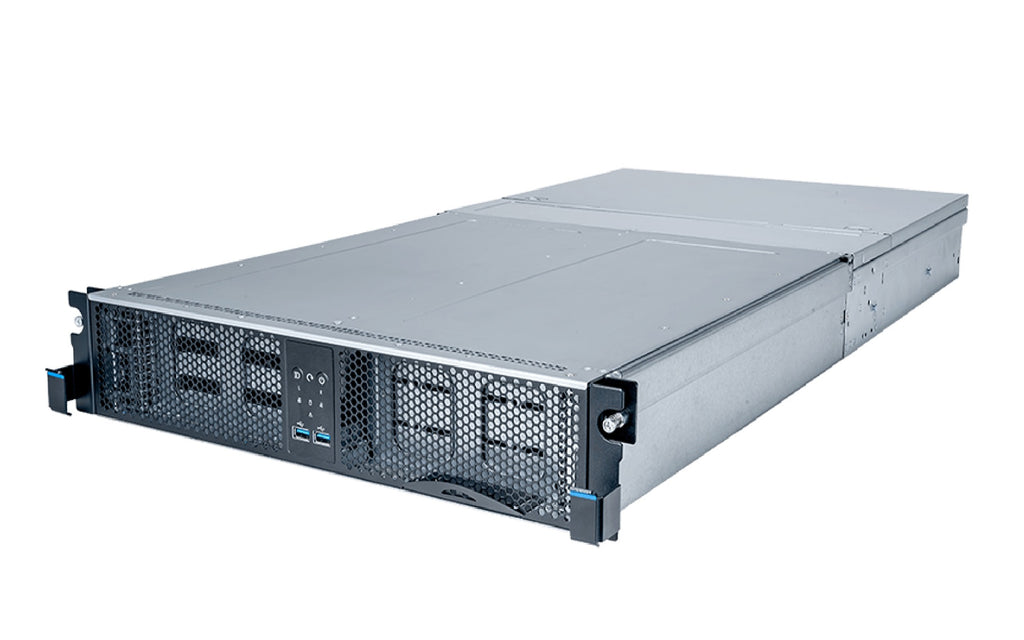

The MSI S3065S280RAS24U2 (part of the CS280-S3065 series) is a 2U high-density storage server designed for data-intensive enterprise workloads. It uses the MS-S402 motherboard and is optimized for the Intel® Xeon® 6 processor family
Specifications
Model Number: S3065S280RAS24U2
Brand: MSI
Alt Part Number(s): S3065S280RAS24U2
Product Type: Barebone Server
Technical Description
Brand: MSI
Model Number: S3065S280RAS24U2
Model Series: CS280-S3065
Processor Type: Single Intel Xeon 6700E/ 6500P/6700P-Series Processor
Processor Core: 144-Core
Processor Thread: 172-Thread
Processor Power: TDP Up to 350W
Processor Socket: (1) Intel LGA 4710 (Socket E2)
Motherboard: MS-S402
Chipset Type: System-on-a-Chip (SoC)
Graphics Controller: ASPEED AST2600
Networking: (2) 25G SFP28 and (2) 1000Base-T Ethernet ports, (1) PCIe 5.0 x16 OCP3.0 slot
RAID Levels: NVMe RAID 0/1/5/10 support Intel VROC
Number of Drive Bays: (24) Front hot-swap 3.5"/2.5" SATA3.0/SAS12G drive bays
(2) Rear hot-swap 2.5" U.2 PCIe5.0 x4 NVMe drive bays
Internal Storage: (2) 2280/22110 PCIe 5.0 x2 NVMe M.2 ports
Expansion Slots: (2) FHHL PCIe 5.0 x16 slots (1) Mechanical support for Host Adapter
Memory Supported: 2TB
Memory Size: 256GB(RDIMM), 64GB(MCRDIMM)
Memory Technology: DDR5
Memory Speed: RDIMM-6400MT/s, MCRDIMM-8000MT/s
Memory Slots: 8 DIMM slots
Memory Channels: 8-Channels
Cooling: (1) EVAC air cooling module, (6) 6038 Hot-swap system fans
Power Supply: (1+1) Redundant 1300W CRPS 80 PLUS Titanium
Form Factor: 2U Rackmount
Height: 3.4"
Width: 17.2"
Depth: 34.6"
