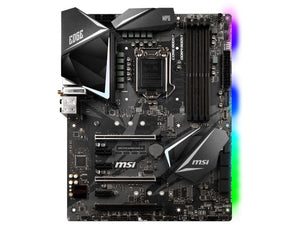

MSI MPG Z390 GAMING EDGE AC Intel Z390 LGA 1151-Socket DDR4 ATX Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
Overview
The MPG Z390 GAMING EDGE AC LGA 1151 ATX Motherboard from MSI is built on the Intel Z390 chipset with an LGA 1151 socket designed for 8th- and 9th-generation Intel Core, Pentium Gold, and Celeron processors. It's equipped with four DDR4 memory slots that support a max of 64GB of 4400 MHz RAM, three PCIe 3.0 x16 slots, three PCIe 3.0 x1 slots, six SATA III ports, and two M.2 slots. With three PCIe 3.0 x16 expansion slots, this motherboard can be used for two-way NVIDIA SLI or three-way AMD CrossFire setups. For storage, the M.2 slots support up to PCIe 3.0 x4 speeds as well as Intel Optane memory for quick data transfer. Please note that you should update the drivers and BIOS to the latest version before using Intel Optane memory. Other integrated features include multiple fan connectors, USB ports, DisplayPort and HDMI connectivity, Intel I219-V Gigabit LAN, 802.11ac Wi-Fi, Bluetooth 5.0, Realtek ALC1220P 7.1-channel HD audio.
Specifications
Model Number: MPG Z390 GAMING EDGE AC
Brand: MSI
Alt Part Number(s): MPG Z390 GAMING EDGE AC
Product Type: Motherboard
Technical Description
Brand: MSI
Model: MPG Z390 GAMING EDGE AC
Chipset: Intel Z390
CPU Socket: LGA 1151
RAM Max Size: 64 GB
RAM Technology: DDR4
Audio Type: HD Audio (8-channel)
Audio Codec: Realtek ALC1220P
Network Controller: Intel I219V / Intel Wireless-AC 9462
Network Interfaces: Bluetooth, Gigabit Ethernet, 802.11a/b/g/n/ac
Expansion Slots: 1 x CPU 4 x DIMM 288-pin 3 x PCIe 3.0 x16 (x16/x0/x4, x8/x8/x4 modes) 3 x PCIe 3.0 x1
Storage Interfaces: SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 SATA-600 / PCIe 3.0 -connectors: 2 x M.2
Internal Interfaces: 4 x USB 2.0 - header 4 x USB 3.1 Gen 1 - header 1 x serial - header 1 x audio - header 1 x USB-C Gen2 - header
Power Connectors: 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
Output Voltage: 208 - 230 V AC
Protocols: Web, SNMP, Telnet
Form Factor: ATX
Width: 12 in
Depth: 9.6 in
*
