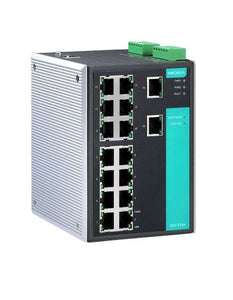

Moxa EDS-516A 16-Ports Layer-2 Managed Ethernet Switch

Overview

The EDS-516A standalone 16-port managed Ethernet switches, with their advanced Turbo Ring and Turbo Chain technologies (recovery time < 20 ms), RSTP/STP, and MSTP, increase the reliability and availability of your industrial Ethernet network. Models with a wide operating temperature range of -40 to 75°C are also available, and the switches support advanced management and security features, making the EDS-516A switches suitable for any harsh industrial environment.



Specifications

Mfr Part Number:  EDS-516A

Brand:  Moxa

Alt Part Number:   EDS-516A

Type:   Ethernet Switch



Technical Description

Brand:  Moxa

Model:  EDS-516A

Total Number of Ports:  16

Ports Type:  10/100BaseT(X) Ports (RJ45 connector)

Alarm Contact Channels:  Resistive load: 1 A @ 24 VDC

Digital Inputs:  +13 to +30 V for state 1 . -30 to +3 V for state 0

Filter:  802.1Q VLAN, GMRP, GVRP, IGMP v1/v2, Port-based VLAN

Industrial Protocol:  EtherNet/IP, Modbus TCP

Management:  IPv4/IPv6, SNMPv1/v2c/v3, LLDP, Port Mirror, Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82

Console Port:  RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)

Connection:  2 removable 6-contact terminal block(s)

Input Voltage:  24 VDC, Redundant dual inputs

Operating Voltage:  12 to 45 VDC

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

Dimensions:  3.7 x 5.31 x 5.62 in



*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
