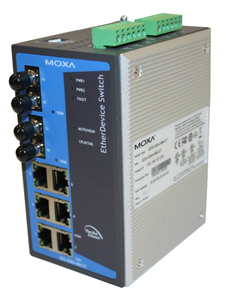

Moxa EDS-508A-MM-ST / EDS-508A-MM-ST V1.2.2 8-Ports Layer-2 Industrial Managed Ethernet switch

Overview

Industrial Managed Redundant Ethernet Switch with 6 10/100BaseT(X) ports, 2 multi mode 100BaseFX ports, ST connector, 0 to 60°C EDS-508A/505A is a plug-and-play managed redundant Ethernet switch. A set of Turbo Ring DIP switches makes it easy to set up MOXA Turbo Ring (recovery time < 300 ms) to increase system reliability.



Specifications

Mfr Part Number:  EDS-508A-MM-ST

Brand:  Moxa

Alt Part Number:   EDS-508A-MM-ST V1.2.2

Type:  Managed Ethernet switch



Technical Description

Brand:  Moxa

Model Number: EDS-508A-MM-ST

Total Numer of Ports:  8

Ports Type:  6 10/100 BaseTx Ports, 2 Multi Mode 100 BaseFx Ports

Digital Input Channels:  2

Console Port:  RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)

Ethernet Interface:  Turbo Ring, Master, Coupler, Reserve

Alarm Contact Channels:  2, Relay output with current carrying capacity of 1 A @ 24 VDC

Filter:  802.1Q VLAN, Port-based VLAN, IGMP v1/v2, GVRP, GMRP

Management:  IPv4/IPv6, SNMPv1/v2c/v3, LLDP, Port Mirror, Back Pressure Flow Control, BOOTP, DDM

Number of VLANs:  64

Industrial Protocols:  EtherNet/IP, Modbus TCP

Operating Voltage:  9.6 to 60 VDC

Input Current:  0.30 A @ 24 VDC

Operating Temperature:  -10 to 60°C (14 to 140°F)

Dimensions:  3.16 x 5.31 x 4.13 in



* Product descriptions and part numbers are subject to change, and may not reflect manufacturer product changes. Please check the manufacturer's website and use the item's manufacturer part number to find the most up to date product description.
