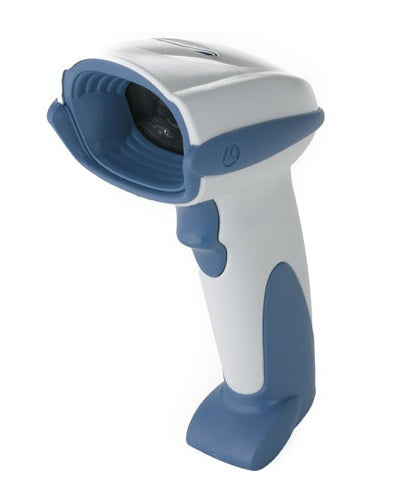

Motorola DS6707-HC2000BZZR DS6707-HC 2D Imager Wireless Handheld Barcode Scanner

Overview

The Motorola DS6707-HC corded imager enables hospitals and clinics to automate data capture at the point of care and beyond, reducing cycle times and the opportunity for errors in medication administration, specimen collection, admitting, dietary management and many other health care applications. The versatile DS6707-HC scanner combines the functionality of a 1D and 2D barcode scanner, digital camera and document scanner in a single device, allowing caregivers to capture virtually any barcode as well as images, signatures and documents. The features and functionality help reduce risk for both patient and hospital, enrich patient information, and enable cost-effective compliance with emerging health care regulations.



Specifications

Model Number:  DS6707-HC2000BZZR

Brand:  Motorola

Alt Part Number(s):  DS6707-HC2000BZZR

Product Type:  Barcode Scanner



Technical Description

Brand:  Motorola

Model:  DS6707-HC2000BZZR

Series:  DS6707-HC

Scanner Type:  Imager

Scanner Capability:  2D

Scan Pattern:  Area

Interface Type:  USB / serial RS-232

Interface:  RS-232, USB

Light Source Wave Length:  630-650 nm

Print Contrast Signal (PCS):  25%

Skew (Degrees):  60

Pitch (Degrees):  65

Minimum Bar Width:  5 mil

Scan Mode:  Single-pass

Connectivity Technology:  Wired

TTL Decoding:  Decoded

Form Factor:  Handheld

Scan Mode:  Single-pass

Min Operating Temperature:  32 °F

Max Operating Temperature:  122 °F

Humidity Range Operating:  5 - 95%

Width:  2.8 in

Depth:  4.7 in

Height:  6.5 in



* Product descriptions and part numbers are subject to change, and may not reflect manufacturer product changes. Please check the manufacturer's website and use the item's manufacturer part number to find the most up to date product description.
