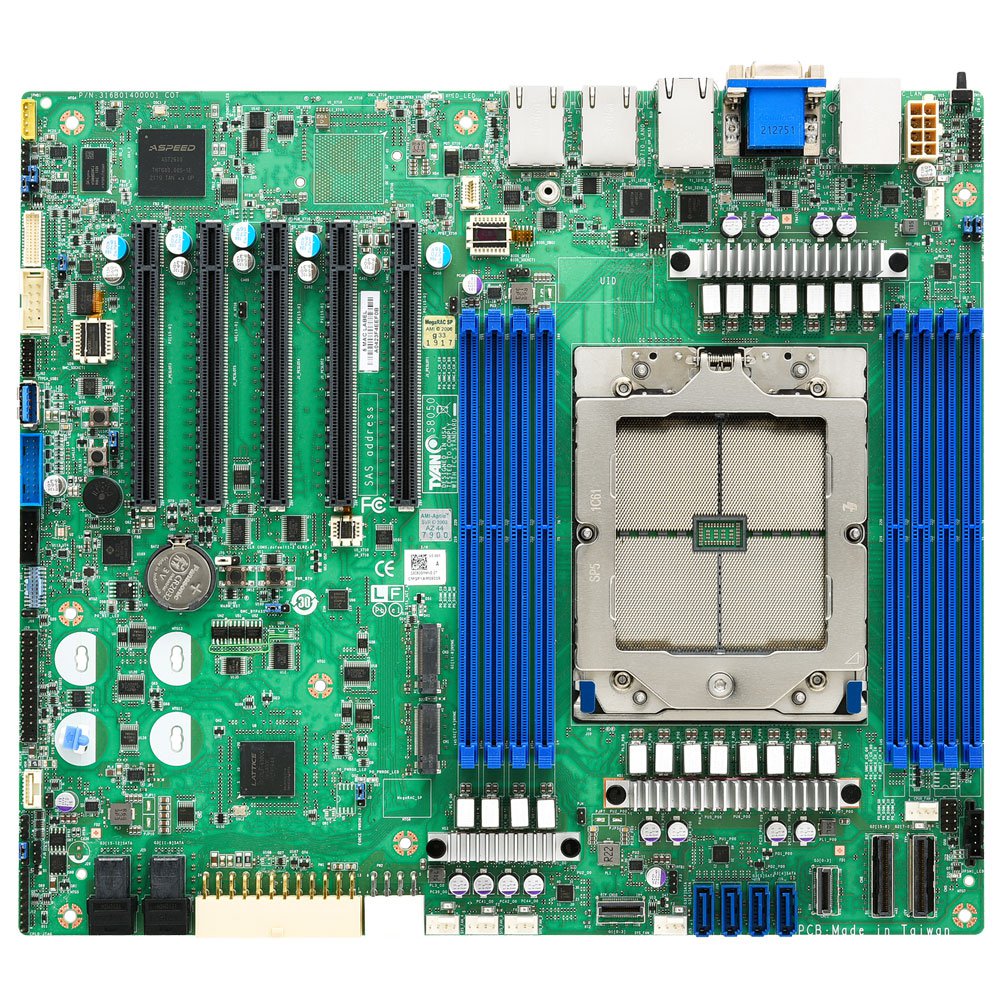

MITAC S8050GM4NE-2T AMD EPYC 9004/9005 SP5 DDR5 6000MHz Server Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
MITAC S8050GM4NE-2T is a CEB server motherboard supporting AMD EPYC 9004 and 9005 Series processors with one Socket SP5, up to 400W cTDP, eight DDR5 6000 MHz RDIMM or 3DS RDIMM slots supporting up to 2,048GB, and five PCIe Gen5 x16 slots. It features dual 10GbE and dual GbE networking with dedicated IPMI, twelve SATA 6Gb/s ports, two PCIe Gen4 M.2 interfaces, MCIO NVMe connectivity, onboard Aspeed AST2600 management with IPMI 2.0 and iKVM, and six 4-pin fan headers.
Specifications
Model Number: S8050GM4NE-2T
Brand: MITAC
Alt Part Number(s): S8050GM4NE-2T
Product Type: Server Motherboard
Technical Description
Brand: MITAC
Model Number: S8050GM4NE-2T
Processor Qty / Socket Type: (1) AMD Socket SP5
Supported CPU Series: (1) AMD EPYC 9004/9005 Series Processor
Thermal Design Power Wattage: Max up to 400W cTDP
Supported DIMM Qty: (8) DIMM slots
DIMM Type / Speed: DDR5 6000 MHz
Capacity: Up to 2,048GB RDIMM/3DS RDIMM DDR5 6000 memory
Memory Channel: 8 Channels per CPU
Memory Voltage: 1.1V
PCIe: (5) PCIe Gen.5 x16 slots
Qty / Port: (2) 10GbE ports + (2) GbE ports + (1) GbE dedicated for IPMI
Controller: Intel I210-AT / Intel X710-AT2
PHY: Realtek RTL8211F
Connector: (12) SATA
Controller: Direct from AMD EPYC CPU
Speed: 6Gb/s
RAID: N/A
Connector M.2: (2) 22110/2280 by PCIe Gen.4 interface
Connector U.2: (2) MCIO x4 / (2) MCIO x8
Connector Type: D-Sub 15-pin
Resolution: Up to 1920 x 1080 at 60Hz
Chipset: Aspeed AST2600
NVMe: (2) MCIO x4 / (2) MCIO x8
USB: (2) USB 3.2 Gen.1 ports
COM: (1) DB-9 COM Connector
VGA: (1) D-Sub 15-pin port
RJ-45: (2) 10GbE ports + (2) GbE ports + (1) GbE dedicated for IPMI
Front Panel: (1) 2x12-pin SSI front panel header
SATA: (2) Mini-SAS HD SFF-8643 connectors / (4) 7-pin SATA connectors
Power: (2) 2x4 Power input connectors / (1) 2x12 Power input connector
Others: (1) ID button
TPM Support: Please refer to our TPM supported list.
Interface: SPI
Chipset: Aspeed AST2600
Fan: Total (6) 4-pin headers
Temperature: Monitors temperature for CPU and system environment
Voltage: Monitors voltage for CPU, memory, chipset and power supply
LED: Fan fail LED indicator / Over temperature warning indicator
Others: Watchdog timer support
Onboard Chipset: Onboard Aspeed AST2600
AST2600 iKVM Feature: 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2600 IPMI Feature: IPMI 2.0 compliant baseboard management controller BMC / 10/100/1000 Mb/s MAC interface
Brand / ROM Size: AMI / 64MB
Feature: Hardware Monitor / FAN speed control automatic / Boot from USB device/PXE via LAN/Storage / Console Redirection / SMBIOS 3.0/PnP/Wake on LAN / ACPI sleeping states S0, S5
Form Factor: CEB
FCC SDoC: Class A
CE DoC: Class A
C-Tick: Yes
VCCI: Class A
Operating Temp.: 10°C to 35°C 50°F to 95°F
Non-operating Temp.: -40°C to 70°C -40°F to 158°F
In/Non-operating Humidity: 90%, non-condensing at 35°C
RoHS 6/6 Compliant: Yes
OS Supported List: Please refer to our AVL support lists.
Motherboard: (1) S8050 Motherboard
Manual: (1) Quick Installation Guide
I/O Shield: (1) I/O Shield
Cable SATA: (2) SATA signal cables
Item Dimension L inch x W inch x H inch: 17 x 18 x 4
