Description
Overview

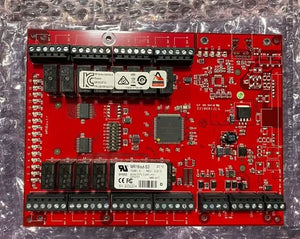

The new Authentic Mercury MR Series 3 Serial Input/ Output (SIO) Modules enable system expansion of Authentic Mercury intelligent controllers as part of Mercury’s distributed architecture. The enhanced modules offer an improved processor and increased memory, plus feature an embedded crypto memory chip that provides a secured layer of encryption to onboard sensitive data. Built on the Authentic Mercury open platform, Series 3 modules provide the necessary flexibility for OEMs, channel partners and end customers to choose the controller configuration that best fits their needs. The HID Mercury MR Series 3 Serial Input/ Output (SIO) modules enable system expansion of HID Mercury intelligent controllers as part of HID Mercury’s distributed architecture. The enhanced modules offer an improved processor and increased memory, plus feature an embedded crypto memory chip that provides a secured layer of encryption to onboard sensitive data.
Specifications
Model Number: MR16OUT-S3
Brand: Mercury
Alt Part Number(s): MR16OUT-S3
Product Type: Interface Panel Module
Technical Description
Brand: Mercury
Model: MR16OUT-S3
Primary Power: 12-24 VDC +/- 10%, 1100mA maximum
Host Communication: RS–485, 2-wire, 4,000’ (twisted pair with shield, Belden 9841)
Output Relays: Sixteen Form-C Relays: Normally open contact (NO): 5A @ 30 VDC resistive ‘ Normally closed contact (NC): 3A @ 30 VDC resistive
Inputs 2 Dedicated: Tamper and Power Monitor
Storage Temperature: -55° - 85° C
Operational Temperature: 0° - 70° C
Humidity Temperature: 5% to 95% RHNC
Output Voltage: 208 - 230 V AC
Protocols: Web, SNMP, Telnet
Features
16 programmable relay outputs; 2 dedicated inputs
AES 128/256 Data Encryption
UL 294 recognized, CE compliant, FCC, RoHS
Easily integrates lighting, heating/ cooling, door or elevator control systems
Initiates commands by operator, by time schedules, or by events
Built-in capacity to control and respond to external device commands
