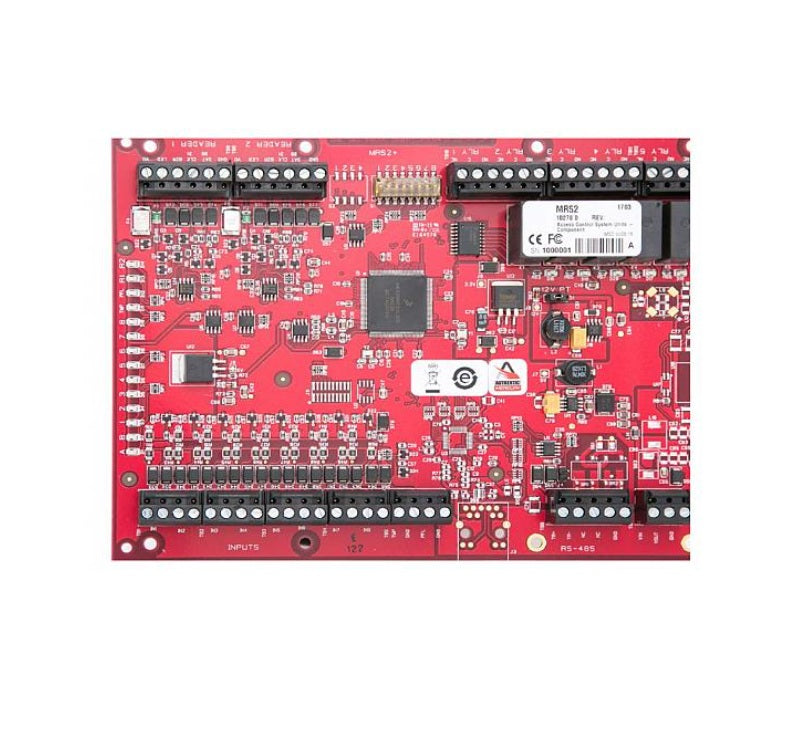

Mercury MR Series AC-MER-CON-MR52 2 Doors RS-485 2-wire Control Panel
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Overview
The AC-MER-CON-MR52 (also known as the MR52-S3) is a high-performance, dual-reader interface panel designed to manage two controlled openings (doors) within a distributed access control system. It functions as a serial I/O module that connects reader hardware and door peripherals to an intelligent controller, such as those from the Mercury EP or LP series.
Specifications
Model Number: AC-MER-CON-MR52
Brand:Mercury
Alt Part Number(s): AC-MER-CON-MR52
Product Type:Control Panel
Technical Description
Brand:Mercury
Model: AC-MER-CON-MR52
Series: MR Series
Reader Ports: 2
Door Capacity: 2 Doors
Inputs: 8 General-purpose inputs
Input Power: 12–24 VDC
Current Draw: up to 550 mA
Host Communication: RS-485 (2-wire)
Power: 12 to 24 VDC input
Max distance: ~4000 ft
Height: 6.0"
Width: 8.0"
Depth: 1.0"
*
