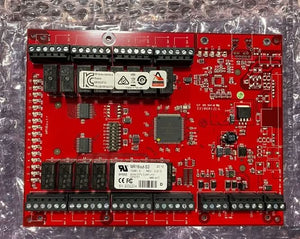

Mercury Interface Panel Module 16-Output Series-3 MR16OUT-S3

Overview

The new Authentic Mercury MR Series 3 Serial Input/ Output (SIO) Modules enable system expansion of Authentic Mercury intelligent controllers as part of Mercury’s distributed architecture. The enhanced modules offer an improved processor and increased memory, plus feature an embedded crypto memory chip that provides a secured layer of encryption to onboard sensitive data. Built on the Authentic Mercury open platform, Series 3 modules provide the necessary flexibility for OEMs, channel partners and end customers to choose the controller configuration that best fits their needs. The HID Mercury MR Series 3 Serial Input/ Output (SIO) modules enable system expansion of HID Mercury intelligent controllers as part of HID Mercury’s distributed architecture. The enhanced modules offer an improved processor and increased memory, plus feature an embedded crypto memory chip that provides a secured layer of encryption to onboard sensitive data.



Specifications

Model Number:  MR16OUT-S3

Brand:  Mercury

Alt Part Number(s):  MR16OUT-S3

Product Type:  Interface Panel Module



Technical Description

Brand:  Mercury

Model:  MR16OUT-S3

Primary Power:  12-24 VDC +/- 10%, 1100mA maximum

Host Communication:  RS–485, 2-wire, 4,000’ (twisted pair with shield, Belden 9841)

Output Relays:  Sixteen Form-C Relays: Normally open contact (NO): 5A @ 30 VDC resistive ‘ Normally closed contact (NC): 3A @ 30 VDC resistive

Inputs 2 Dedicated:  Tamper and Power Monitor

Storage Temperature:  -55° - 85° C

Operational Temperature:  0° - 70° C

Humidity Temperature:  5% to 95% RHNC

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet



Features

16 programmable relay outputs; 2 dedicated inputs

AES 128/256 Data Encryption

UL 294 recognized, CE compliant, FCC, RoHS

Easily integrates lighting, heating/ cooling, door or elevator control systems

Initiates commands by operator, by time schedules, or by events

Built-in capacity to control and respond to external device commands



*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
