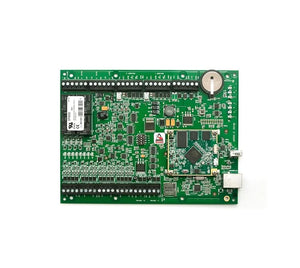

Mercury EP4502 10/100Base-T Dual Reader Intelligent Access Controller Board
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Overview
The HID Mercury EP4502 (now largely succeeded by the LP4502) is a high-performance intelligent controller designed for large-scale access control systems. Built on a Linux-based platform, it supports two doors locally and can scale to manage up to 64 access points.
Specifications
Model Number: EP4502
Brand: Mercury
Alt Part Number(s): EP4502
Product Type: Controller Board
Technical Description
Brand: Mercury
Model Number: EP4502
Ethernet: 10/100Base-T
Cardholder Capacity: Supports up to 2,000,000 user records
Transaction Buffer: Stores up to 50,000 events
Communication: Primary 10/100 Ethernet port; supports IPv4 and IPv6
Reader Ports: 2 ports supporting Wiegand, Clock-and-Data, or RS-485 (OSDP)
Inputs: 8 general-purpose inputs, plus 2 dedicated inputs for tamper and power monitor
Outputs: 4 Relays (Form C, 5A @ 30Vdc)
Serial Ports: 2 two-wire RS-485 ports
Backup Battery: 3 V lithium
Power Requirements: 12–24 VDC ± 10%, 500mA maximum
*
