The LP1502 intelligent controller Readers provide decision-making, event reporting, and database storage for the Mercury hardware platform. Two reader interfaces provide control for two physical barriers. The LP1502 communicates with the host via the onboard 10-BaseT/100Base-TX Ethernet port or the Micro USB port (2.0) with an optional Micro USB to Ethernet adapter. Each reader port can accommodate a reader that utilizes TTL (D1/D0, Clock/Data), F/2F (standard or supervised), or 2-wire RS-485 device signaling (OSDP reader for example) and also provides tri-state LED control, and buzzer control (one wire LED mode only). Four Form-C relay outputs may be used for door strike control or alarm signaling. unsupervised or supervised. The LP1502 requires 12 to 24 Vdc for power.
Model Number: LP-1502
Alt Part Number(s): LP1502
Type: Intelligent Controller Readers

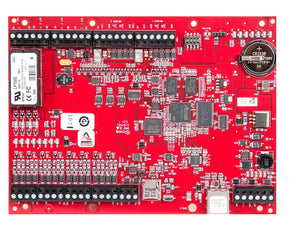

Mercury LP-1502/ LP1502 Duel Reader Intelligent Controller Access Card.
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
