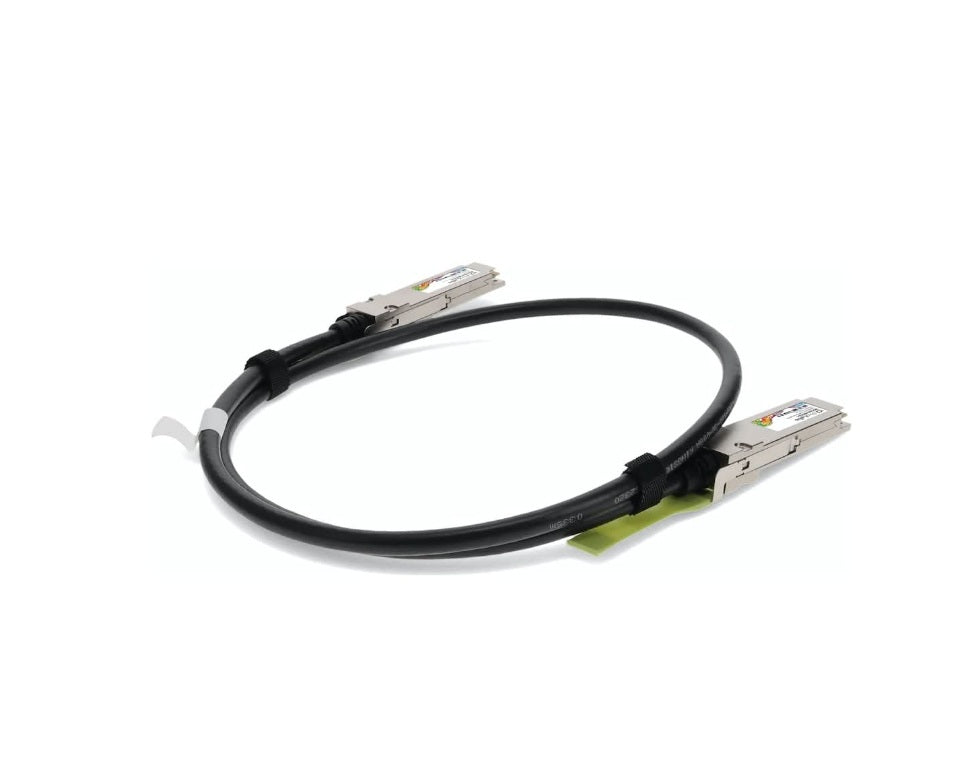

Mellanox MCP1650-H002E26 200GbE 2m Direct Attached Copper Twinax Cable
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
The MCP1650-H002E26 is a 2-meter passive Direct Attach Copper (DAC) cable manufactured by NVIDIA (formerly Mellanox). It is part of the LinkX product line, designed for 200Gb/s InfiniBand HDR and 200GbE Ethernet high-speed networking in data centers
Specifications
Model Number: MCP1650-H002E26
Brand: Mellanox
Alt Part Number(s): MCP1650-H002E26
Product Type: Cable
Technical Description
Brand: Mellanox
Model: MCP1650-H002E26
Max Data Rate: 200Gb/s HDR
Connector Type: QSFP56 to QSFP56
Cable Type: Passive Twinax
Modulation: 4x50Gb/s PAM4
Minimum Bend Radius: 35mm
Cable Length: 2m
Wire AWG: 26AWG
Jacket Material: PVC(OFNR)
Bit Error Rate (BER): 1E-13～1E-15
Power Supply: Single 3.3V
Power Consumption: ＜0.1W
