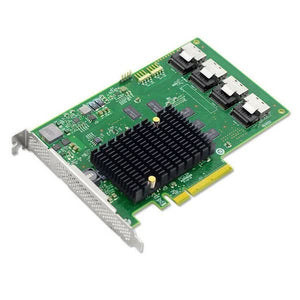

LSI LSI00244 9201-16i 16-Port PCI-Express 2.0 x8 SAS Host Bus Adapter Card
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
Overview
The Lsi Sas 9201-16i Host Bus Adapter Provides The Greatest Available Throughput To Internal Server Storage Arrays Through Sixteen Internal 6gb/s Ports, Driving Up To 512 Sas And Sata Physical Devices. This Hba Offers Dynamic Sas Functionality Including Dual-port Drive Redundancy And Sata Compatibility. The Lsi Sas 9201-16i Doubles The Performance Of Previous Generation Sata+sas Hbas And Is Great For Driving Cost-effective And Reliable Scalability In Todays Data Centers.
Specifications
Model Number: LSI00244
Brand: LSI
Alt Part Number(s): LSI00244
Product Type: Host Bus Adapter Card
Technical Description
Brand: LSI
Model: LSI00244
Product Name: 9201-16i 16-port SAS Controller
Number of Channel: 16
Total Number of SAS Ports: 4
SAS Connector Details: 4 SFF-8087
Interfaces: 1 x SATA 6Gb/s / SAS (internal)
Host Interface: PCI Express 2.0 x8
Output Voltage: 208 - 230 V AC
Protocols: Web, SNMP, Telnet
Form Factor: Low Profile
Height: 4.2"
Width: 6.6"
Features
6Gb/s data transfer rate per port
Four x4 internal SFF8087 Mini-SAS connectors
x8 PCI Express 2.0 host interface
Connects to SAS and SATA HDDs, SSDs, and tape drives
Support for up to 512 physical devices
Fusion-MPT architecture can achieve more than 290,000 I/Os per second
PowerPC 440 @533MHz
Supports most major operating systems
*
