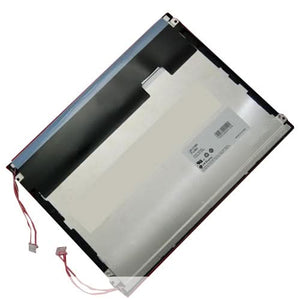

LG Electronics LB121S03 12.1-Inch SVGA 800x600 262K 3x6Bit TTL TFT-LCD Display Module
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Specifications
Model Number: LB121S03
Brand: LG
Alt. Part Number(s): LB121S03
Product Type: TFT-LCD Display Module
Technical Description
Model: LB121S03
Size: 12.1"
Resolution: SVGA, 800 x 600
Brightness: 400 cd/m²
Contrast: 500:1 typ.
Viewing Angle v/h: 95°/120°, CR ≥ 10
Backlight: 2 CCFL, 50.000 Std (min)
Interface: 3 x 6 Bit TTL
Color Depth: 262K
Display Mode: normally white TN
Response Time Tr/Tf: 10/20 ms (typ.)
Operating Temperature: 0 to +50° C
Storage Temperature: -20 to +60° C
Supply Voltage: 3.3V (typ.)
Dimensions (WxHxD): 280/218,0/11 mm (typ.)
Display Area (WxH): 245,0 x 184,5 mm
*
