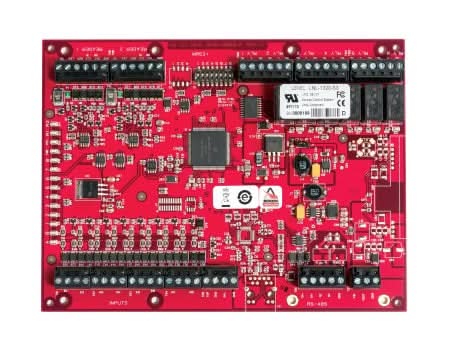

Lenel Series 3 LNL-1320-S3 Series 3 Dual Reader Module
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
Lenel offers a Dual Reader Interface (DRI) module for access control solutions. Most access control card readers, keypads, or readers with keypads that use standard Wiegand Data1/Data0 or Clock/Data communication are supported, as are those that support the bidirectional RS-485 Open Supervised Device Protocol (OSDP™). Lock, unlock, and facility code offline access modes are supported on all readers connected to the DRI. Each DRI supports up to 16 different card formats as well as issues codes for both magnetic and Wiegand card formats. The DRI provides a vital link between the Intelligent System Controller (ISC) and the card reader attached to the interface. As many as 32 DRI modules can be multi-cd dropped using RS- 485 2-wire or 4-wire communication up to 4,000 feet per port away from the ISC. Each DRI module is individually addressed for increased reporting capabilities with OnGuard® access control software applications. The DRI includes eight inputs that support normally open, normally closed, supervised, and non-supervised circuits. In addition, six output relays support fail-safe or fail-secure operation
Specifications
Model Number: LNL-1320-S3
Brand: Lenel
Alt Part Number(s): LNL-1320-S3
Product Type: Dual Reader Interface Module
Technical Description
Brand: Lenel
Model: LNL-1320-S3
Series: Series 3
Product Type: Dual Reader Interface Module.
Controller Type: Reader Module
Software compatibility: OnGuard
Max. no. of card formats: 16
PCB only: Yes
Max. no. of doors: 2
Max no. of readers: 2
Reader interface: Clock-data, OSDP, Wiegand
Host connection: RS485
