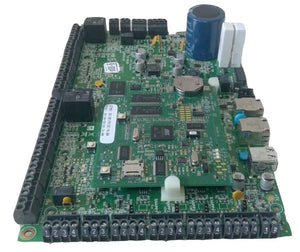

Lenel NGP-3320 Security Access Control Board

Overview

The NGP-3300 Series of Intelligent System Controllers (ISCs) by Lenel is designed for integrated intrusion and access control applications. As the engine for Lenel’s hybrid environment, this controller provides the power and capacity needed for larger intrusion and access control environments to be central monitored. Designed from the ground up to be Dual-Path Ethernet based panels, these controllers can also support transmitting events to Central Station receivers for intrusion reporting via HSC/IP or using WWM. Utilizing its native Dual-Path Ethernet communications and an advanced linux-based processor, the NGP-3300 Series Panels can communicate upstream to the host computer with failover protected throughput up to 8 times greater than the fastest serial connections. The NGP-3300 Series can support up to 500,000 cardholders, 1024 Standard or Intrusion Type Input Points, 256 Outputs, and 130 Doors (Entry/Exit Readers per Door). Four downstream SNAPP Communication ports can be used to connect multiple combinations of LCD Keypads, Input Control Modules, Output Control Modules, Card Reader Interface Modules, and Intelligent Power Supplies (up to 96 devices) giving this panel set a capacity to handle Enterprise level installations.



Specifications

Mfr Part Number:  NGP-3320

Brand:  Lenel

Alt Part Number:   NGP-3320

Type:  Access Control Board



Technical Description

Lenel NGP-3320 Security Access Control Board



Features

16 Pre-Defined Intrusion Point Types (Entry/Exit, Route, Perimeter, Hold-Up, etc.)

Priority Area Arming/Disarming

Common Area Arming/Disarming

Schedule-based Arming

Two Stage Auto Arming

False Alarm Prevention Processing

Pre-processing /Transmission Delay

Bypass/Isolate/Restore Support

Invalid User Code Lockout

Fail to Close Alarm

Work Late’ Schedule extensions by profile
