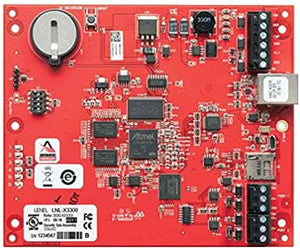

Lenel LNL-X3300 15Mb 128-Floors 24VDC Intelligent System Controller

$1,499.00 Regular price
Sale price$1,499.00
LenelSKU: 1146660
Model Number: LNL-X3300
Condition: New
In stock:  Yes
No reviews



The LNL-X3300 Intelligent System Controller (ISC) is designed for advanced access control applications. As the access control engine for the OnGuard® system, the ISC provides power and functionality. The ISC can communicate to the host computer in a single- or dual-path Ethernet configuration. Multiple combinations of Input Control Modules, Output Control Modules and Card Reader Interface Modules (up to 64 devices) can be configured.



Mfr Part Number:  LNL-X3300

Brand:  Lenel

Model Number:  LNL-X3300

Type:  Intelligent System Controller


Technical Description

Brand:  Lenel

Model:  LNL-X3300

Memory:  15 MB

Access Levels:  128

Ethernet:  10-BaseT/100Base-TX

Max. Pin code digits:  9

Operating temperature:  0 to +70°C

Storage temperature:  -55 to +85°C

Relative humidity:  0 to 95% noncondensing

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

Width:  5.0 In

Length:  6.0 In

Height:  1.0 In



DHCP and fixed IP addressing supported

DNS device naming through DHCP extended commands

Optional Secondary NIC, USB port (2.0) with optional adapter

15 MB of available on-board, non-volatile flash memory

Battery-back, non-volatile storage of 50,000 events

Configurable option for Data at Rest encryption

Firmware stored in flash memory, background download of firmware updates supported

12 or 24 VDC input power

Supports up to 16 badge formats

Biometric template storage support

Up to 32,000 access level permissions

255 holidays with grouping

255 timezones, each with 6 intervals

Elevator control support for up to 128 floors

Supports up to 9-digit user PIN codes

Status LEDs for heartbeat & battery status, upstream and downstream communication, and memory write status

Two dedicated inputs for tamper and power failure status
