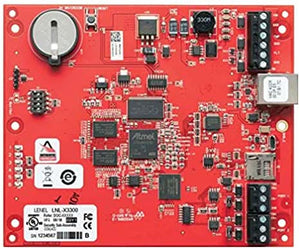

Lenel LNL-X3300 Intelligent access control for LenelS2 OnGuard systems
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
Overview
The LNL-X3300 Intelligent System Controller (ISC) supports advanced access control by serving as the core engine of the OnGuard® system, providing both processing power and system functionality, enabling single- or dual-path Ethernet communication with the host, and supporting flexible configurations of up to 64 input, output, and card reader interface modules.
Specifications
Mfr Part Number: LNL-X3300
Brand: Lenel
Model Number: LNL-X3300
Type: Intelligent System Controller
Technical Description
Brand: Lenel
Model: LNL-X3300
Memory: 15 MB
Access Levels: 128
Ethernet: 10-BaseT/100Base-TX
Max. Pin code digits: 9
Operating temperature: 0 to +70°C
Storage temperature: -55 to +85°C
Relative humidity: 0 to 95% noncondensing
Output Voltage: 208 - 230 V AC
Protocols: Web, SNMP, Telnet
Width: 5.0 In
Length: 6.0 In
Height: 1.0 In
Features
DHCP and fixed IP addressing supported
DNS device naming through DHCP extended commands
Optional Secondary NIC, USB port (2.0) with optional adapter
15 MB of available on-board, non-volatile flash memory
Battery-back, non-volatile storage of 50,000 events
Configurable option for Data at Rest encryption
Firmware stored in flash memory, background download of firmware updates supported
12 or 24 VDC input power
Supports up to 16 badge formats
Biometric template storage support
Up to 32,000 access level permissions
255 holidays with grouping
255 timezones, each with 6 intervals
Elevator control support for up to 128 floors
Supports up to 9-digit user PIN codes
Status LEDs for heartbeat & battery status, upstream and downstream communication, and memory write status
Two dedicated inputs for tamper and power failure status
*
