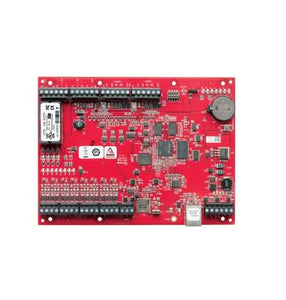

Lenel LNL-X2220 12/24 VDC Intelligent Dual Reader Controller
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
Overview
The LNL-X2220 Intelligent Dual Reader Controller (IDRC) provides a single-board solution for interfacing one or two doors to an OnGuard® system. In addition, other I/O and reader interface modules can be added to the controller’s downstream port to expand its capabilities. The LNL-X2220 controller revolutionizes access control system architecture by allowing Ethernet connection directly from an entry location to the OnGuard server, while still providing the security, functionality, and modularity of Lenel’s proven hardware platform. The LNL-X2220 controller is scalable for any access control application, from the most basic to the most sophisticated. In the event of communication loss, the LNL-X2220 controller allows nearly all local functionality to continue unimpaired until the server connection is restored.
Specifications
Model Number: LNL-X2220
Brand: Lenel
Alt Part Number(s): LNL-X2220
Product Type: Dual Reader Controller
Technical Description
Brand: Lenel
Model: LNL-X2220
Memory: 6 MB
Max No. of access levels:128
Max. No. of card formats: 16
Elevator control: Yes
Max. No. of floors:128
No. of cardholders: 240000
Software compatibility:OnGuard
Operating voltage:12 or 24 VDC
Current consumption: 500 mA
Output Voltage: 208 - 230 V AC
Protocols: Web, SNMP, Telnet
Features
DNS device naming through DHCP extended commands
6 MB of available on-board, non-volatile flash memory
Battery-backed, non-volatile storage of 50,000 events
Configurable option for Data at Rest encryption
Firmware stored in flash memory, background download of firmware updates supported
Supports up to sixteen badge formats
Biometric template storage support for OSDP™ Biometric and legacy Bioscrypt® readers
Optional Secondary NIC, USB port (2.0) with optional adapter
Enhanced anti-passback capabilities
Up to 32,000 access-level permissions
*
