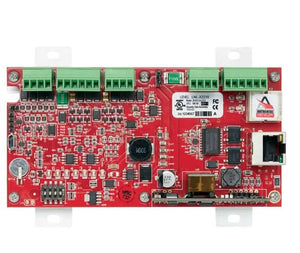

Lenel LNL-X2210 6Mb 128-Access Level Intelligent Single Door Controller
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
Specifications
Mfr Part Number: LNL-X2210
Brand: Lenel
Model Number: LNL-X2210
Type: Door Controller
Technical Description
Brand: Lenel
Model: LNL-X2210
Access Levels: 128
Card Formats: 16
Memory: 6 MB
Reader interface: Magstripe, OSDP, OSDP V1, OSDP V2, OSDP V2
Software compatibility: OnGuard
Operating temperature: 0 to +70°C
Storage temperature: -55 to +85°C
Power Output: PoE 12 VDC @ 625 mA
Output Voltage: 208 - 230 V AC
Protocols: Web, SNMP, Telnet
Cardholders: 240000
Features
6 MB of available on-board, non-volatile flash memory
Firmware stored in flash memory, background download of firmware updates supported
Optional secondary communications available through a USB to Ethernet connection
RNDIS support enables USB connection to display controller web configuration pages
240,000 cardholders, 50,000 event transaction buffer
Up to 128 access levels per cardholder
Programmable card activation and deactivation times and dates
Individual extended held open and strike times (ADA required)
Up to sixteen active card formats per LNL-X2210
PIV, CAC, and TWIC card compatible
Magnetic stripe, proximity, iClass®, multiClass, MIFARE®, DESFIRE®, biometric template support
Advanced Encryption Standard (AES) 256-bit algorithm for communications to Series 3 reader and I/O modules; AES 128-bit encryption to Series 2 reader and I/O modules
AES128 or TLS 1.2 (with AES256 support) communication to OnGuard
*
