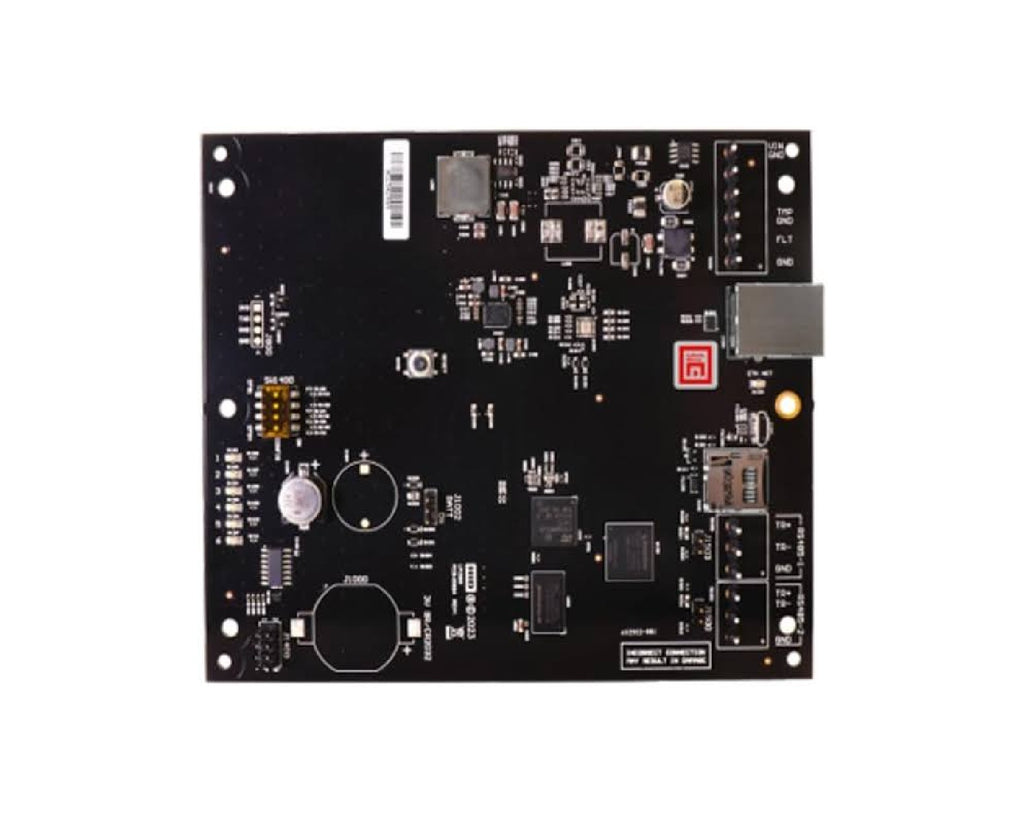

Lenel LNL-M3300 M-Series 2 Inputs 500mA Intelligent System Controller
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
The LenelS2 LNL-M3300 is an advanced M-Series Intelligent System Controller designed for enterprise-level commercial access control systems. Manufactured by Mercury, it acts as the primary local hardware brain for the OnGuard security ecosystem. It processes access decisions independently at the edge without needing constant communication with the main server
Specifications
Model Number: LNL-M3300
Brand: Lenel
Alt Part Number(s): LNL-M3300
Product Type: Controller
Technical Description
Brand: Lenel
Model: LNL-M3300
Series: M-Series
Host Software: LenelS2 OnGuard
Maximum Downstream Modules: 64
RS-485 Buses: 2
Modules per RS-485 Bus: 32 maximum
RS-485 Distance: 4,000 ft / 1,219 m per bus
RS-485 Speed: 2,400–115,200 bps
RS-485 Format: 2-wire, asynchronous, half-duplex, 8 data bits, 1 stop bit
Host Ethernet: 10Base-T / 100Base-TXSecondary Ethernet Via USB 2.0 + optional USB2-OTGE100 adapter
Cardholder Database Memory: 15MB on-board flash
Event Memory: 500,000 events, super-capacitor backed
Dedicated Inputs: 2 — cabinet tamper and power-fault monitoring
Power: DC 12–24V ±10%
Maximum Current: 500mA
