Lenel LNL-M2220 8 Inputs DC 12–24V Intelligent Dual Reader Controller
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview

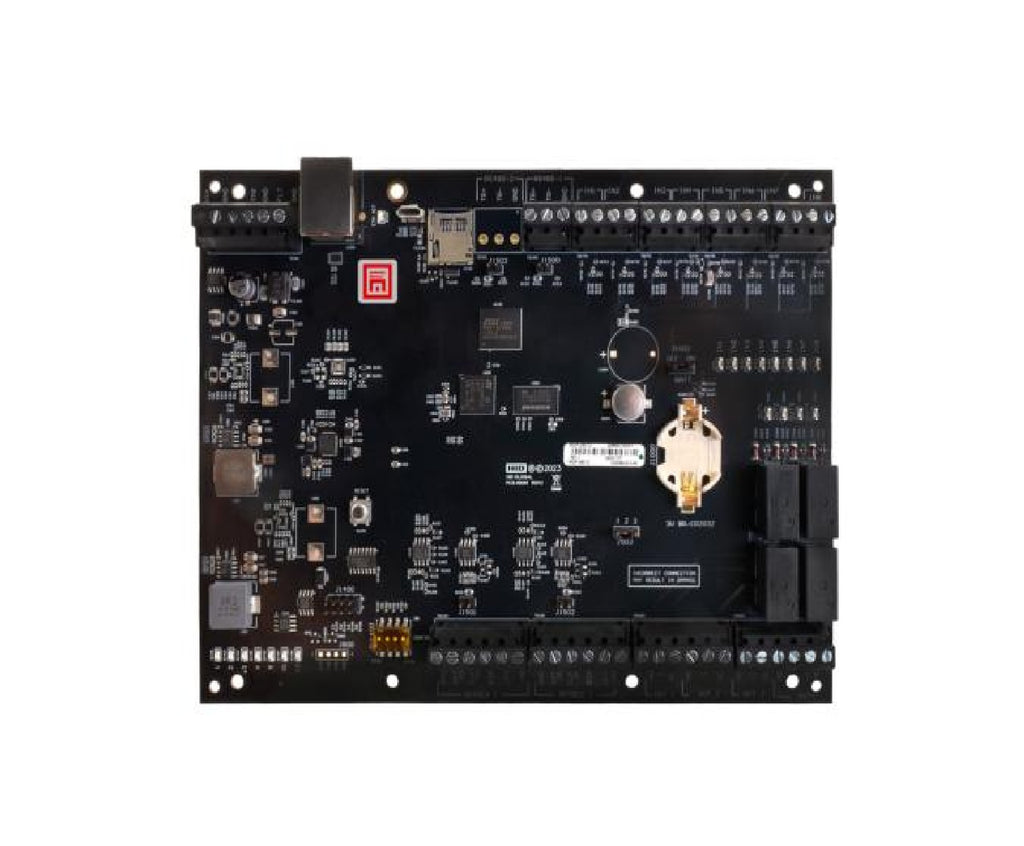

The Lenel LNL-M2220 is an intelligent dual-reader access control panel used to manage up to two doors in a commercial security layout. It connects directly via onboard Ethernet to an OnGuard security server and supports downstream expansion for up to 32 total devices
Specifications
Model Number: LNL-M2220
Brand: Lenel
Alt Part Number(s): LNL-M2220
Product Type: Controller
Technical Description
Brand: Lenel
Model: LNL-M2220
Doors: 1–2 doors
Reader interfaces: 2
Reader protocols: Wiegand/Data1-Data0, Clock/Data, F/2F, and OSDP RS-485
Inputs: 8 supervised/unsupervised inputs
Relays: 4 Form-C outputs
Host communication: 10/100 Ethernet
Secondary communication: USB 2.0 with optional adapter
Downstream RS-485: Up to 32 devices, supporting up to 64 doors with expansion modules
Power: 12–24 VDC ±10%, 500 mA maximum, excluding reader current
Reader power: Up to 600 mA per reader port
Cardholders: Up to 250,000
Event storage: Up to 500,000 events
Card formats: Up to 16
