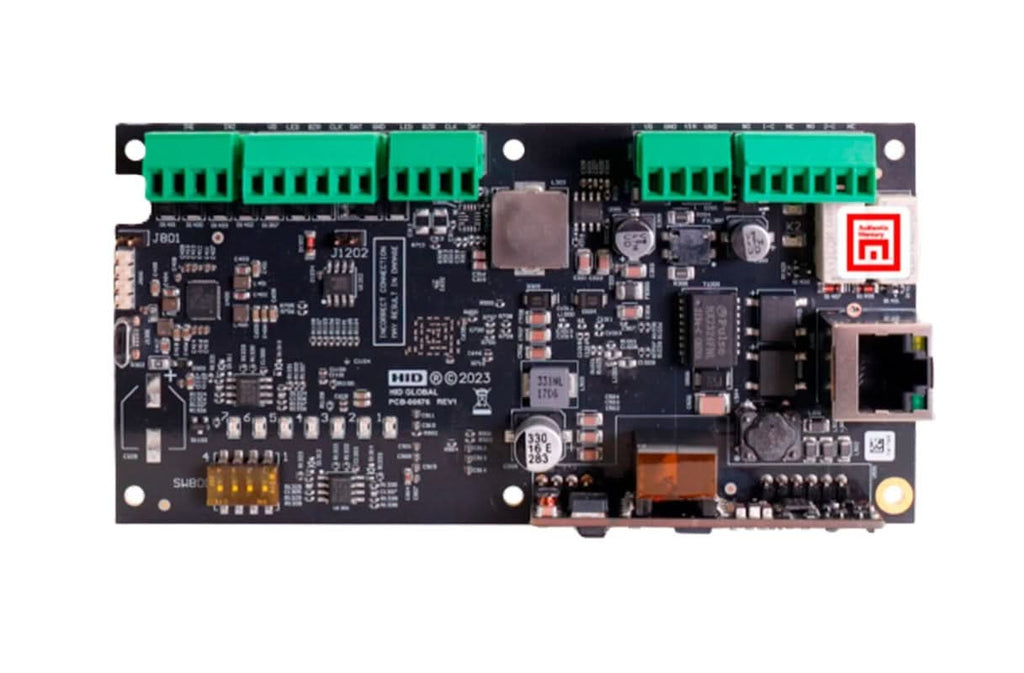

Lenel S2 LNL-M2210 32-bit Processor 6MB Intelligent Single Door Controller
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
The LNL-M2210 is an intelligent single-door access control controller manufactured by LenelS2, part of Honeywell. It connects card readers, door-lock hardware and door-monitoring devices to the OnGuard access control system over Ethernet. It can make access decisions locally after configuration, allowing the door to operate without continuous host intervention
Specifications
Model Number: LNL-M2210
Brand: Lenel
Alt Part Number(s): LNL-M2210
Product Type: Door Controller
Technical Description
Brand: Lenel
Model Number: LNL-M2210
Controller Type: Intelligent single-door controller
Door Control: 1 door / opening
Reader Support: Up to 2 readers, depending on configuration
Processor: 32-bit processor
Onboard Flash Memory: 6MB
Cardholder Capacity: Up to 240,000 cardholders
Event Buffer: Up to 500,000 transactions
Card Formats: Up to 16 active formats
Network: 10/100Base-T Ethernet
USB: Micro USB 2.0
Relay Outputs: 2 Form-C relays, 2 A at 30 VDC resistive
Inputs: 2 programmable supervised/unsupervised inputs, plus cabinet tamper monitoring
Reader Interfaces: TTL/Wiegand-style D1/D0, Clock/Data; RS-485/OSDP support on reader port 1
Power Input: PoE (IEEE 802.3af), PoE+ (802.3at), or 12 VDC ±10%
