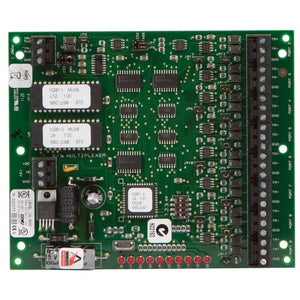

Lenel LNL-8000 8-Channel 12VDC RS232 Star Multiplexer

LenelSKU: 1146985
Model Number: LNL-8000
Condition: New Open Box
No reviews

Price:
Sale price$449.00

Description

Overview

The Star Multiplexer from Lenel is designed to implement star topology on a downstream port of any Lenel Intelligent System Controller or on any host communication port of any OnGuard server. Up to eight RS-485 (2-wire) connections or four RS-485 (4-wire) connections can be made downstream of the LNL-8000. The Lenel Star Multiplexer requires 12 VDC for power. It allows communication protocol conversion, and provides connection with alternate communication devices to extend effective distances.



Specifications

Mfr Part Number:  LNL-8000

Brand:  Lenel

Alt Part Number:   LNL-8000

Type:  Multiplexer



Technical Description

Brand:  Lenel

Model:  LNL-8000

Video Inputs:  8 channels

Bus interface:  RS232,​ RS485

Voltage:  12 V DC

DC input:  12 VDC ± 15%, 250 mA

AC input:  12 VAC ± 15%. 400 mA RMS

Power Consumption:  250 mA

Operating:  32° to 158° F (0° to +70° C)

Storage:  -67° to 185° F (-55° to +85° C)

Humidity:  0 to 95% RHNC

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

Dimensions:  6 x 5 x 1 in.



Features

Host communications - 38.4 Kbps direct wire (RS-232/RS-485 multidropped)

12 VDC input power

Status LEDs for heartbeat, upstream and downstream communication

Support for either 2-wire or 4-wire RS-485 topologies

RS-485 on-board termination is jumper selectable

Can be used for retrofit and new wiring configurations



* Product descriptions and part numbers are subject to change, and may not reflect manufacturer product changes. Please check the manufacturer's website and use the item's manufacturer part number to find the most up to date product description.
