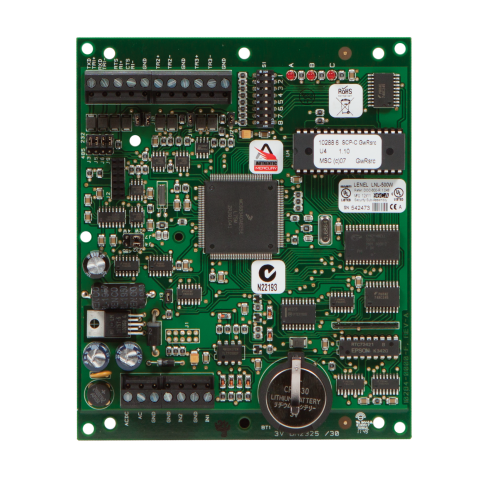

Lenel LNL-500W 38.4Kbps RS-485 12VDC Wireless Reader Interface Gateway

Overview

The Lenel Wireless Reader Interface (WRI) Gateway module provides an innovative solution to interface with Wireless products from Schlage. The gateway provides the link from the Lenel Intelligent System Controller (ISC) to the Panel Interface Module (PIM-485-OTD) wireless receiver. This configuration will support up to 16 Schlage wireless reader products per gateway.



Specifications

Mfr Part Number:  LNL-500W

Brand:  Lenel

Alt Part Number:  LNL-500W

Type:  Interface Gateway



Technical Description

Brand:  Lenel

Model:  LNL-500W

Network Type:  RS-485

DC input:  12 VDC ± 15%. 250 mA

AC Input:  12 VAC ± 15%. 400 mA RMS

Voltage:  12 V DC

Power Consumption:  250 mA

Operating Temperature:   oC: 0 ~ 70

Operating Humidity:  %: 0 ~ 95

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

Dimensions:  6 x 5 x 1 in.



Features

Host communications - 38.4 Kbps direct wire (RS-232/RS-485 multidropped), Ethernet TCP/IP, or dial-up communication

12 VAC or 12 VDC input power

Supports up to 16 Schlage Wireless readers

Flash memory for real-time program updates

Status LEDs for heartbeat, upstream and downstream communication

Two dedicated inputs for Cabinet Tamper and Power Failure status

On-board RS-485 termination jumpers

Easy to configure dip switches for address and communication speeds

On-board program configuration and clock battery backup
