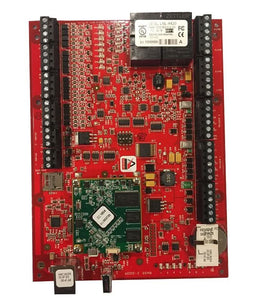

Lenel LNL-4420 12-24VDC Advanced Intelligent Dual Reader Controller

Overview

The LNL-4420 controller enables Ethernet connection directly from an entry location to the OnGuard server. The controller is scalable for most access control applications. In addition, other I/O and reader interface modules can be added to the controller’s two downstream ports, further expanding its capabilities. In the event of communication loss, the LNL-4420 controller can maintain most of its local functionality until the server connection is restored.



Specifications

Mfr Part Number:  LNL-4420

Brand:  Lenel

Alt Part Number:   LNL-4420

Type:   Dual Reader Controller



Technical Description

Brand:  Lenel

Model:  LNL-4420

Number of Access Level:  32000

Number of Floors:  128

Total Number of Pin code Digits:  9

Current consumption:  150 mA

Memory:  16 MB

Operating Temperature:  32° to 158° F (0° to +70° C)

Storage Temperature:  -67° to +185° F (-55° to +85° C)

Humidity:  0 to 95% Relative Humidity

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet



Features

On-board Ethernet 10/100Base-T port. DHCP and fixed IP address supported.

DNS device naming through DHCP extended commands

16 MB of available on-board, non-volatile flash memory

Battery-backed, non-volatile storage of 50,000 events

Firmware stored in flash memory, background download of firmware updates supported

Supports up to 16 different formats (8 card formats and 8 asset formats)

Biometric template storage support for Schlage Recognition Systems® and Legacy Bioscrypt® templates

Enhanced anti-passback capabilities

Up to 32,000 access-level permissions

255 holidays with grouping, 255 timezones, each with 6 intervals

Elevator control support for up to 128 floors

Individual extended held open and strike times (ADA required)

Up to 9-digit user PIN codes

21 status LEDs

Dedicated input for cabinet tamper and power failure status

12 or 24 VDC input power
