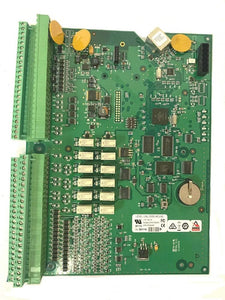

Lenel LNL-3300-ACUXL Network Intelligent System Controller Module

Overview

Lenel LNL-3300-ACUXL Network Intelligent System Controller Module.

Specifications

Model Number:  LNL-3300-ACUXL

Brand:  Lenel

Alt Part Number(s):  LNL-3300-ACUXL

Product Type:  Controller Module



Technical Description

Brand:  Lenel

Model Number:  LNL-3300-ACUXL

Primary Power:  18.5 to 28 VDC

Memory and Clock Backup Battery:  3 V Lithium, type BR2325, BR2330 or CR2330

Maximum Input Current:  0.5 A. Does not include SIO ports 1 and 2 and auxiliary outputs

Output Power:  SIO port 1 and 2 24 VDC @ 1.25 A maximum from each port (TB2-1 and TB2-7)

Host Communication Ethernet: 10Base-T/100Base-TX

SIO Communication:   2 each, 4-wire RS-485, 2,400 to 115,200 bps, asynchronous, half-duplex, 1 start bit, 8 data bits, and 1 stop bit

Inputs:  2 dedicated for tamper and UPS fault monitoring,12 for door position monitoring, request to exit oralarm contacts

Outputs:  12 Form-C, 2 A @ 30 VDC, resistive

Power and Relays:  10Base-T/100Base-TX

Ethernet Cat:  5 minimum

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

* Product descriptions and part numbers are subject to change, and may not reflect manufacturer product changes. Please check the manufacturer's website and use the item's manufacturer part number to find the most up to date product description.
