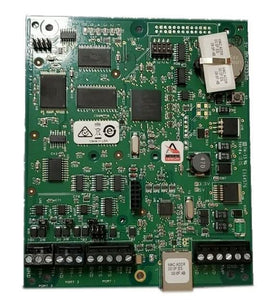

Lenel LNL-3300 12-24VDC 15Mb Intelligent System Controller

$649.00 Regular price
Sale price$649.00
LenelSKU: 1148717
Model Number: LNL-3300
Condition: Refurbished
In stock:  Yes
No reviews


This item is a Special Order and may take additional shipping time.
Place your order with SAITECH, and we will make every effort to have the item delivered to you as soon as possible.

How We Process Orders
Fastest Shipping: To get your products to you as quickly as possible, most orders placed directly by one of our several leading distributors or by the product's manufacturer. As a result, no one can get your orders to you faster than we can!

Strong Industry Alliances: SAITECH maintains long-standing alliances with the industry's leading distributors and manufacturers. As a result, we are the top source for your computer, office and Server technology needs.

Lowest Possible Prices: Advanced electronic interfaces continually scan our distributors for their best current pricing and availability. While changes in availability between different distributors may result in some price fluctuations, it ensures that you will always receive the lowest possible prices on currently available products!

Realtime Inventory: Live inventory updates are not available for this product.



The LNL-3300 Intelligent System Controller (ISC) by Lenel is designed for advanced access control applications. As the access control engine for the OnGuard® system, the ISC provides power and functionality. The ISC can communicate to the host computer in a single- or dual-path configuration of Ethernet, dial-up or direct connect RS-485 communication. Multiple combinations of Input Control Modules, Output Control Modules and Card Reader Interface Modules (up to 64 devices) can be configured.



Model Number:  LNL-3300

Brand:  Lenel

Alt Part Number(s):  LNL-3300

Product Type:  Intelligent System Controller


Technical Description

Brand:  Lenel

Model:  LNL-3300

Number of Access Level:  32000

Number of Pin Code Digit:  9

Number of Memory:  15MB

Host connection:  IP,​ RS485

Communication Type:  10/100 BaseT Ethernet

Voltage:  12 ~ 24 V DC

Power Consumption:  300 mA

Operating Temp oC:  0 ~ 70

Operating Humidity %:  0 ~ 95

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet



On-board Ethernet 10/100Base-T port provides up to 8 times greater throughput than serial-to-Ethernet converters. DHCP and fixed IP addressing supported.

DNS device naming through DHCP extended commands

Host dual path communication enabled - on-board Ethernet TCP/IP, direct wire (RS-485, 2-wire multidrop capable), or dial-up communications

15 MB of available on-board, non-volatile flash memory

Battery-backed, non-volatile storage of 50,000 events

Firmware stored in flash memory, background download of firmware updates supported

12 or 24 VDC input power

Supports up to 16 different formats (8 card formats and 8 asset formats)

Biometric template storage support for Schlage Recognition Systems®, Bioscrypt®, and Identix®.

Enhanced anti-passback capabilities

Up to 32,000 access level permissions

255 holidays with grouping, 255 timezones, each with 6 intervals

Elevator control support for up to 128 floors


*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
