Description
Overview

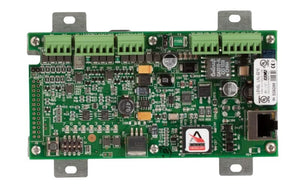

The LNL-2210 Intelligent Single Door Controller (ISDC) is an edge device by Lenel that provides a solution for interfacing one or two readers to a single door within an OnGuard system. Offering innovation at an economical price point, the LNL-2210 is a high-performance, Ethernet ready card reader panel that controls a single opening with 802.3af compliant Power over Ethernet (PoE). Built on a proven platform, the LNL-2210 seamlessly interfaces to a larger system for flexible, reliable expansion. Easy installation with PoE makes this the logical choice for single door control.
Specifications
Mfr Part Number: LNL-2210
Brand: Lenel
Alt Part Number: LNL-2210
Type: Intelligent Single Door Controller
Technical Description
Brand: Lenel
Model: LNL-2210
Number of Access Level: 128
Number of PIN code Digits: 9
Number of holidays: 255
Memory: 6 MB
Reader Interface: PoE: 12Vdc +/- 10% or a local power supply (12Vdc) (PTC limited 150mA max)
Inputs: Two general purpose programmable circuit type and dedicated tamper
Outputs: Two relays - form-C, 2 Amp, 30 Vdc
LED: 11 status LED’s. TTL, two wire or one wire bi-color support
Power Output: 12 Vdc @ 650 mA including reader and AUX output
Operating: 32° to 158° F (0° to 70° C)
Storage: -67° to 185° F (-55° to 85° C)
Humidity: 10 to 95% relative humidity, non-condensing (RHNC)
Output Voltage: 208 - 230 V AC
Features
Primary Port: 10/100 Ethernet
Two reader ports: Magnetic stripe, Wiegand, or RS-485 (RS-485 on one reader port capable of supporting two readers)
Two fixed inputs for door contact and request to exit (REX)
Two outputs; one dedicated for a strike and one general purpose (Form C, 2A @ 30Vdc)
6 MB of available on-board, non-volatile flash memory
Firmware stored in flash memory, background download of firmware updates supported
240,000 cardholders, 50,000 event transaction buffer
Programmable card activation and deactivation times and dates
Eight active card formats per LNL-2210
Magnetic stripe, proximity, iClass, multiClass, MIFARE, DESFIRE, biometric template support
18 digit Badge ID
Nine digit PIN number maximum support
Open Supervised Device Protocol (OSDP) compliant
Enhanced anti-passback capabilities: nested global hard or soft anti-passback, timed anti-passback, two person control, designated one or two person control, tail gate control and occupancy limit
255 holidays with grouping, 255 timezones, each with six intervals
