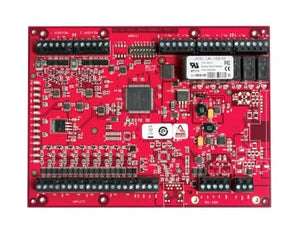

Lenel LNL-1320-S3 Series 3 Dual Reader Interface Module

Price:
$659.00 Regular price
Price:
Sale price$659.00
LenelSKU: 19809
Model Number: LNL-1320-S3
Condition: Refurbished
In stock:  Yes
No reviews

SPECIAL ORDER

This item is a Special Order and may take additional shipping time.
Place your order with SAITECH, and we will make every effort to have the item delivered to you as soon as possible.

How We Process Orders
Fastest Shipping: To get your products to you as quickly as possible, most orders placed directly by one of our several leading distributors or by the product's manufacturer. As a result, no one can get your orders to you faster than we can!

Strong Industry Alliances: SAITECH maintains long-standing alliances with the industry's leading distributors and manufacturers. As a result, we are the top source for your computer, office and Server technology needs.

Lowest Possible Prices: Advanced electronic interfaces continually scan our distributors for their best current pricing and availability. While changes in availability between different distributors may result in some price fluctuations, it ensures that you will always receive the lowest possible prices on currently available products!

Realtime Inventory: Live inventory updates are not available for this product.


Description

Overview

Lenel offers a Dual Reader Interface (DRI) module for access control solutions. Most access control card readers, keypads, or readers with keypads that use standard Wiegand Data1/Data0 or Clock/Data communication are supported, as are those that support the bidirectional RS-485 Open Supervised Device Protocol (OSDP™). Lock, unlock, and facility code offline access modes are supported on all readers connected to the DRI. Each DRI supports up to 16 different card formats as well as issues codes for both magnetic and Wiegand card formats. The DRI provides a vital link between the Intelligent System Controller (ISC) and the card reader attached to the interface. As many as 32 DRI modules can be multi-cd dropped using RS- 485 2-wire or 4-wire communication up to 4,000 feet per port away from the ISC. Each DRI module is individually addressed for increased reporting capabilities with OnGuard® access control software applications. The DRI includes eight inputs that support normally open, normally closed, supervised, and non-supervised circuits. In addition, six output relays support fail-safe or fail-secure operation



Specifications

Model Number:  LNL-1320-S3

Brand:  Lenel

Alt Part Number(s):  LNL-1320-S3

Product Type:  Dual Reader Interface Module



Technical Description

Brand:  Lenel

Model:  LNL-1320-S3

Series:  Series 3

Product Type:  Dual Reader Interface Module.

Controller Type:  Reader Module

Software compatibility:  OnGuard

Max. no. of card formats:  16

PCB only:  Yes

Max. no. of doors:  2

Max no. of readers:  2

Reader interface:  Clock-data, OSDP, Wiegand

Host connection:  RS485

Operating temperature:  0 to +70°C

Storage temperature:  -55 to +85°C

Relative humidity:  5 to 95% non-condensing

Compliance:  CE, FCC, RoHS, UL 1076, UL 294

Standards:  FCC Part 15, ULC CSA-C22.2, CAN/ULC-S319-05, cUL/ORD-C1076

Physical dimensions:  152 x 203 x 25 mm



Features

12 or 24 VDC power supply

Supports Data1/Data0, Clock/Data, Supervised and Unsupervised F2F and OSDP-compatible RS-485 readers and keypads

Supports Open Supervised Device Protocol (OSDP) readers, including biometric template transfer and Secure Channel encryption

Downloadable firmware

Six Form-C 5 A at 28 VDC relay outputs

Up to 16 different formats

Issue code support for magnetic and Wiegand formats

Door contact supervision (open/closed)

REX push-button monitor

Strike control output

Bi-colour reader status LED support and 2-wire LED support

Beeper control

Dedicated tamper and power failure circuits

Support for offline reader access mode

On-board jumpers for termination

The on-board regulator allows 12 VDC reader support from 24 VDC power source

DIP switch-selectable addressing

Advanced Encryption Standard (AES) 128-bit or 256-bit encryption supported, depending on ISC and OnGuard version

Supports Schlage® Handkey® template download

Compatible with current and previous versions of OnGuard Extended Functionality

Connect FIPS-201 readers for embedded authentication (when used with LNL-4420 and appropriate HID® and OnGuard software and licenses)
