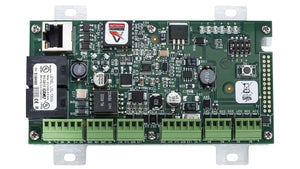

Lenel LNL-1300E Single Door Flexible Network-Connected Reader Interface Module

Overiview

The LNL-1300e is a flexible network-wired Lenel hardware module that interfaces either a single door (with 1 or 2 readers) or a set of I/O points to OnGuard systems version 7.1 or higher. The LNL-1300e allows doors or auxiliary I/O to be conveniently wired to an OnGuard system using structured cabling and Ethernet, rather than via dedicated RS-485 wiring. When combined with a compatible Lenel Intelligent System Controller, this allows either a 100% Ethernet solution or a hybrid system to be deployed, depending on the security and IT infrastructure considerations of the installation. The LNL-1300e provides the same Local I/O linking and fallback options as traditional serial connected modules, but with the convenience and flexibility of network connection. The LNL-1300e can be configured in one of two operating modes.



Specifications

Mfr Part Number:  LNL-1300E

Brand:  Lenel

Alt Part Number:   LNL-1300E

Type:  Reader Interface Module



Technical Description

Brand:  Lenel

Model:  LNL-1300E

Maximum Number of Door:  1

Maximum Number of Readers:  2

Number of Input:  4

Number of Output:  2

LED:  11 status LED’s. TTL, two wire or one wire bi-color support

Buzzer:  Can be controlled by LNL-1300e when one-wire LED mode is selected

Network Port:  10BaseT/100BaseTX Ethernet, IPv4 addressing, NIST Validated 128 bit AES Encryption

Power Output:  Reader port 1:12 VDC @ 150 mA, 6.14 BTU/hour , Reader port 2: use AUX power port

Operating temperature:  0 to +70°C

Storage temperature:  -55 to +85°C

Relative humidity:  10 to 95% noncondensing

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

Dimensions:  5.5”W x 2.75”L x .96”H without bracket ,  5.5”W x 3.63”L x 1.33”H with bracket



Features

Supports 10/100 Ethernet communications to Lenel Intelligent System Controllers

Advanced Encryption Standard (AES) 128-bit algorithm for communications

Mounts into a standard triple gang switch box for a compact footprint

Firmware stored in flash memory and background download of firmware updates supported

Custom or standard end-of-line resistors supported

Features when in network-connected single door controller mode:

Two reader ports: magnetic stripe, wiegand, Supervised or Unsupervised F2F,or OSDP (Port 1 only)

Paired or single reader support

Reader Port 1 supports Open Supervised Device Protocol (OSDP), including biometric template transfer and Secure Channel encryption

Two outputs; one dedicated for a strike and one general purpose (Form C, 5A @ 28Vdc)



*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
