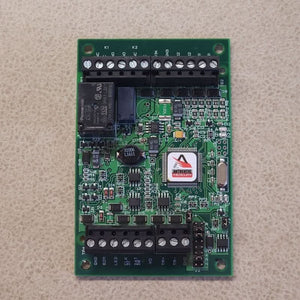

Lenel LNL-1300 Series-II Single Reader Interface Module

Overview

Lenel offers a Single Reader Interface (SRI) module for access control solutions. Access control card readers, keypads, or readers with keypads that use standard Wiegand Data1/Data0 or Clock/Data communication are supported, as are those supporting the bidirectional RS-485 Open Supervised Device Protocol (OSDP). Lock, unlock, and facility code offline access modes are supported on all readers connected to the SRI. Each SRI supports up to eight different card formats as well as issue codes for both magnetic and Wiegand card formats.



Specifications

Model Number:  LNL-1300

Brand:  Lenel

Alt Part Number(s):  LNL-1300

Product Type:  Interface Module



Technical Description

Brand:  Lenel

Model:  LNL-1300

Primary Power:  12 to 24Vdc ±10%, 150mA maximum (plus reader current) 12Vdc @ 110mA (plus reader current) nominal, 4.50 BTUs 24Vdc @ 60mA (plus reader current) nominal, 4.91 BTUs

Outputs:  Form-C contacts: K1: 5A @ 30Vdc, K2: 1A @ 30Vdc

Inputs:  2 supervised, End of Line resistors, 1k/1k ohm, 1% 1/4 watt standard 1 unsupervised, dedicated for cabinet tamper

Reader Interface:  Reader power: 12 to 24Vdc ±10% (input voltage passed through)

Reader Port:  Compatibility Wiegand Data 1/Data 0 Magnetic Clock/Data F/2F Single Wire Open Supervised Device Protocol

Environmental Temperature Operating:  -40°F to 167°F (-40°C to +75°C)

Storage:  -67°F to 185°F (-55°C to +85°C)

Humidity:  10% to 95% RHNCOutput

Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

Width:  4.25

Length:  2.75”

Height:  1.0”



Features

12 or 24 VDC power supply

Supports Data1/Data0, Clock/Data and Lenel OSDP-compatible RS-485 readers and keypads

Two Form-C relay outputs (5 A door strike and 1 A aux relays)

Up to 16 different card formats (8 card formats and 8 asset formats)

Issue code support

Downloadable firmware

Door contact open or closed, supervised or nonsupervised

REX push-button monitor - supervised or nonsupervised

Strike control output

Bicolor or 2-wire reader status LED support

Reader beeper control

Plastic mounting channel

Support for offline reader access mode

Elevator control, support for 128 floors



*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
