Description
Overview

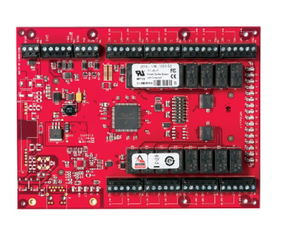

Series 3 Lenel® Output Control Module (OCM) communicates directly with the Intelligent System Controller (ISC) by either 2-wire or 4-wire RS-485 communication. Each OCM is an individually-addressed device, and counts as a single device on all Intelligent System Controllers. The OCM can be operated by either 12 or 24 VDC power. Each OCM includes dedicated tamper and power failure input contacts.
Specifications
Mfr Part Number: LNL-1200-S3
Brand: Lenel
Model Number: LNL-1200-S3
Type: Output Control Module
Technical Description
Brand: Lenel
Model: LNL-1200-S3
Outputs: 16 Form-C, 5A @ 30Vdc, resistive
Controller type: Input/Output Module
Host connection: RS485
Elevator control max no. of floors: 128
Operating temperature: 0 to +70°C
Storage temperature: -55 to +85°C
Operating voltage: 12 to 24Vdc ±10%, 1100mA maximum
Compliancy: CE, RoHS, UL 1076, UL 294
Output Voltage: 208 - 230 V AC
Protocols: Web, SNMP, Telnet
Widht: 6 In
Length: 8 In
Height: 0.69 In
Feautres
16 Form-C 5 A, 30 VDC contacts for load switching
12 or 24 VDC input power
2 dedicated digital inputs for tamper and power failure status
RS-485 communication, multidropped (2-wire or 4-wire RS-485)
Up to 16 OCMs per Intelligent System Controller
On-board termination jumpers
DIP switch-selectable addressing
Status LEDs for communication to the host, heartbeat and relay status
Elevator control, support for 128 floors
Advanced Encryption Standard (AES) 128-bit or 256-bit encryption supported, depending on ISC and OnGuard version
Suitable as replacement for Series 1 and Series 2 boards
