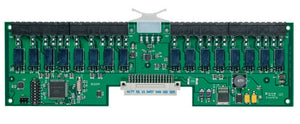

Lenel LNL-1200-16DOR Series M LNL-1200 2 VDC 16 Relay Output Control Module

Overview

The LNL-1200-16DOR is the replacement for the legacy CASI 16DORboard (PN:110078001). The LNL-1200-16DOR supports 16 relay outputs.

There are 8 Form-C relays, and 8 Form-A relays. Note: Each LNL-1200-16DOR uses one board address.



Specifications

Model Number:  LNL-1200-16DOR

Brand:  Lenel

Alt Part Number(s):  LNL-1200-16DOR

Product Type:  Control Module



Technical Description

Brand:  Lenel

Model:  LNL-1200-16DOR

 Power :  Supplied from LNL-3300-M5 or LNL-8000- MCOM via backplane, 12 VDC +/- 10% (300mA)

Communications Ports:  Backplane: RS-485

Outputs:  8 Form-C Relay outputs, 2A@30VAC/VDC 8 Form-A Relay outputs, 2A@30/VAC/VDC

Cabling Requirements:  As required for load

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

Temperature Storage:   -65°F to 185°F (-55°C to 85°C)

Temperature Operating:  32°F to 158°F (0°C to 70°C)

Humidity:   RHNC 5 to 95%

Width:  3.5”

Length:  10.25”

Height:  0.69”

Features

Mercury Hardware for OnGuard, redesign to retrofit into Legacy CASI Controllers

Replaces CASI 16DOR, field wiring plug compatible

Supports 16 Relay Outputs, for controlling power for control devices (horns, lights, barriers, etc).

8 Form-C Relay outputs, 2A at 30VAC/VDC

8 Form-A Relay outputs, 2A at 30VAC/VDC
