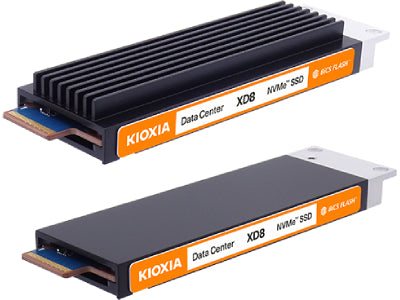

Kioxia XD8 KXD8DRJJ7T68 7.68TB NVMe PCIe 5.0 E1.S Solid State Drive
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Kioxia KXD8DRJJ7T68, XD8 Series, is a 7.68 TB E1.S solid state drive featuring BiCS FLASH TLC memory, an NVMe interface, and PCIe 5.0 connectivity with a data transfer rate of 128 Gbps, delivering sequential read speeds up to 12,500 MB/s, sequential write speeds up to 5,800 MB/s, random read performance up to 2,300K IOPS, and random write performance up to 250K IOPS. Designed for enterprise storage applications, it offers a 2,500,000-hour MTBF, 1 DWPD endurance, 21 W operating power consumption, a 12 V ±10% supply voltage, an operating temperature range of 0°C to 75°C, and a weight of 80 g.
Specifications
Model Number: KXD8DRJJ7T68
Brand: Kioxia
Alt Part Number(s): KXD8DRJJ7T68
Product Type: Solid State Drive
Technical Description
Brand: Kioxia
Model: KXD8DRJJ7T68
Series: XD8
Hard Drive / Size: E1.S
SSD Capacity: 7.68 TB
Flash Type: BiCS FLASH TLC
Hard Drive / Interface Type: NVMe; PCIe 5.0
Hard Drive / Data Transfer Rate: 128 Gbps
Max 4KB Random Read: 2,300K IOPS
Max 4KB Random Write: 250K IOPS
MTBF: 2,500,000 hours
Power Consumption Operational: 21 W
Power / Voltage Required: 12 V ±10%
Weight: 80 g
Min Operating Temperature: 0°C
Max Operating Temperature: 75°C
Max Sequential Read: 12,500 MB/s
Max Sequential Write: 5,800 MB/s
Endurance: 1 DWPD
COO: Japan
UNSPSC Code: 43201830
