- Overview

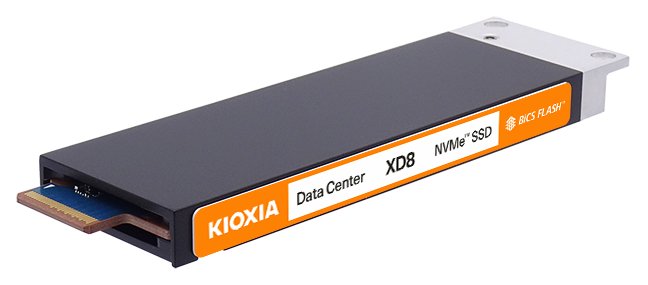

Kioxia KXD8DRJJ1T92 XD8 is a 1.92 TB solid state drive featuring an E1.S 9.5 mm form factor, PCIe 5.0 NVMe 2.0 interface, PCIe Gen5 x4 connectivity, BiCS FLASH TLC memory, and performance of up to 12,500 MB/s sequential read, 3,100 MB/s sequential write, 1,700K IOPS random read, and 100K IOPS random write. It provides enterprise-grade reliability with 1 DWPD endurance, 2,500,000 hour MTTF, 17 W typical active power consumption, and support for operating temperatures from 0°C to 75°C.
Specifications
Model Number: KXD8DRJJ1T92
Brand: Kioxia
Alt Part Number(s): KXD8DRJJ1T92
Product Type: Solid State Drive
Technical Description
Brand: Kioxia
Model: KXD8DRJJ1T92
Series: XD8
Capacity: 1.92 TB
Form Factor: E1.S 9.5 mm
Interface: PCIe 5.0; NVMe 2.0; PCIe Gen5 x4
Maximum Interface Speed: 128 GT/s
Flash Memory Type: BiCS FLASH TLC
Sequential Read: Up to 12,500 MB/s
Sequential Write: Up to 3,100 MB/s
Random Read: Up to 1,700K IOPS
Random Write: Up to 100K IOPS
Supply Voltage: 12 V ± 10%
Power Consumption: Active: 17 W Typical; Ready: 5 W Typical
MTTF: 2,500,000 Hours
DWPD: 1
Dimensions: Thickness: 9.5 mm +0.35 mm; Width: 33.75 mm ± 0.25 mm; Length: 118.75 mm ± 0.55 mm
Weight: 80 g Maximum
Operating Temperature: 0°C to 75°C
Non-operating Temperature: -40°C to 85°C
Operating Humidity: 5% to 95% RH
Operating Vibration: 12 m/s² {1.24 Grms}; 2 to 500 Hz
Operating Shock: 6.9 km/s² {700 G}; 0.5 ms
