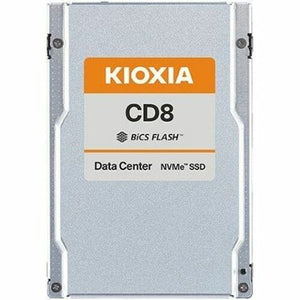

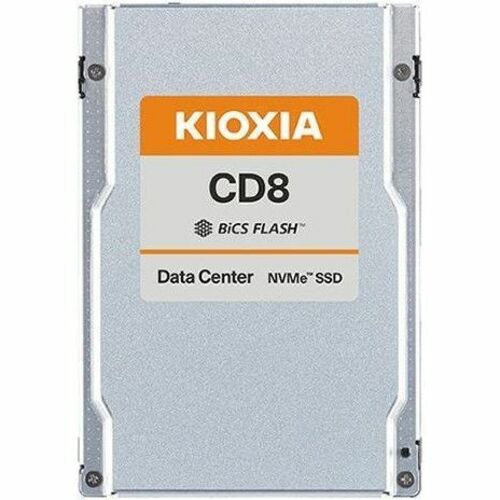

Kioxia SDF1D84GEB02T CD8 3.2TB PCIe 4.0 NVMe 3DWPD SIE 2.5in Solid State Drive
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Kioxia SDF1D84GEB02T CD8 3.2TB PCIe 4.0 NVMe Solid State Drive delivers mixed use data center performance in a 2.5 inch form factor with 3 DWPD endurance and 112 layer BiCS FLASH 3D TLC technology. Featuring up to 1250000 IOPS random read, 340000 IOPS random write, 7.03 GB/s sequential read, 3.71 GB/s sequential write, and PCIe 4.0 x4 NVMe interface, it ensures high speed, reliable, and efficient storage for server and enterprise environments.
KIOXIA CD8-V Series is a mixed use data center NVMe SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing and virtualization. Built with a PCIe®4.0 (16 GT/s x4) interface, the CD8-V Series SSDs deliver consistent performance up to 1,250K IOPS (random read) and 380K IOPS (random write).
Featuring KIOXIA 112-layer BiCS FLASH 3D TLC flash memory, the CD8-V 2.5-inch form factor SSDs deliver 3 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 12.8 TB in a 2.5-inch form factor, making them well-suited for hyperscale data center applications.
Key Features
- PCIe4.0, NVMe 1.4 specification compliant
- Open Compute Project Datacenter NVMe SSD specification v2.0 support (not all requirements)
- Form factor: 2.5-inch, 15mm thickness
- Proprietary KIOXIA architecture: controller, firmware and 112-layer BiCS FLASH 3D TLC
- Single-port
- Provides more productive performance and superior data storage for a variety of files
- Internal drive type for a reliable and convenient storage solution
- Store as many documents, pictures and videos as you need with 3.13 TB capacity
- PCI Express 4.0 x4 interface for a speedy data transfer to ensure maximum efficiency
- 2.5" form factor for added reliability and dependability
Product Specification:
| Product Type: Solid State Drive |
| Device Supported: Data Center,Server,Workstation |
| Storage Capacity: 3.13 TB |
| Manufacturer Part Number: KCD8XVUG3T20 |
| Manufacturer Website Address: http://www.toshiba.com |
| Weight (Approximate): 4.59 oz |
| Drive Type: Internal |
| Form Factor: 2.5" |
| Length: 4" |
| Manufacturer: Toshiba |
| Product Model: KCD8XVUG3T20 |
| Product Name: Data Center NVMe™ Mixed Use SSD |
| Product Series: CD8-V |
| Brand Name: KIOXIA |
| Drive Interface: PCI Express NVMe |
| Drive Interface Standard: PCI Express 4.0 x4 |
| Random 4kb Read: 1250000IOPS |
| Random 4kb Write: 340000IOPS |
| Endurance (Dwpd): 3 |
| Endurance Type: Mixed Use |
| Mean Time Between Failures (Mtbf): 285.2 Year |
| Maximum Sequential Read: 7.03 GB/s |
| Maximum Sequential Write: 3.71 GB/s |
| Feature1: Provides more productive performance and superior data storage for a variety of files |
| Feature2: Internal drive type for a reliable and convenient storage solution |
| Feature3: Store as many documents, pictures and videos as you need with 3.13 TB capacity |
| Feature4: PCI Express 4.0 x4 interface for a speedy data transfer to ensure maximum efficiency |
| Feature5: 2.5" form factor for added reliability and dependability |
