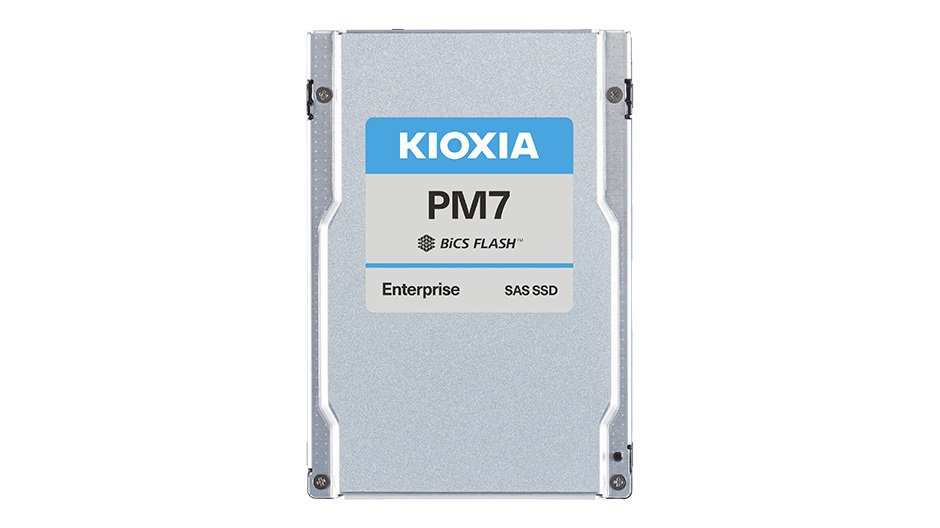

Kioxia KPM7WVUG3T20 PM7-V 3.2TB SAS-4 22.5Gbit/s 2.5-inch SSD
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Kioxia KPM7WVUG3T20 PM7-V is a 3.2 TB enterprise SAS solid-state drive engineered for mission-critical data center and server storage environments in a 2.5-inch 15 mm form factor. This SAS-4 SSD utilizes BiCS FLASH TLC technology and delivers sustained sequential performance up to 4,200 MB/s read and 3,650 MB/s write with up to 720K IOPS random read, 340K IOPS random write, 3 DWPD endurance, and enterprise-grade reliability rated for 2,500,000 hours MTTF.
Specifications
Model Number: KPM7WVUG3T20
Brand: Kioxia
Alt Part Number(s): KPM7WVUG3T20
Product Type: Solid State Drive
Technical Description
Brand: Kioxia
Model: KPM7WVUG3T20
Series: PM7-V
Capacity: 3.2 TB
Form Factor: 2.5-inch; 15 mm thickness
Interface: SAS-4
Interface Speed: 22.5 Gbit/s; 12.0 Gbit/s; 6.0 Gbit/s; 3.0 Gbit/s; 1.5 Gbit/s
Flash Memory Type: BiCS FLASH TLC
Sustained 128 KiB Sequential Read: 4,200 MB/s
Sustained 128 KiB Sequential Write: 3,650 MB/s
Sustained 4 KiB Random Read: 720K IOPS
Sustained 4 KiB Random Write: 340K IOPS
Supply Voltage: 12 V +/- 10%; 5 V +10% / -7%
Power Consumption (Ready): 5 W typ.
MTTF: 2,500,000 hours
DWPD: 3
Thickness: 15.0 mm +0; -0.5 mm
Width: 69.85 mm +/- 0.25 mm
Length: 100.45 mm Max
Weight: 130 g Max
Operating Temperature: 0 °C to 70 °C
Non-operating Temperature: -40 °C to 80 °C
Operating Humidity: 5% to 95% R.H.
Operating Vibration: 21.27 m/s^2 {2.17 Grms} (5 to 800 Hz)
Operating Shock: 9.8 km/s^2 {1,000 G} (0.5 ms)
